Description

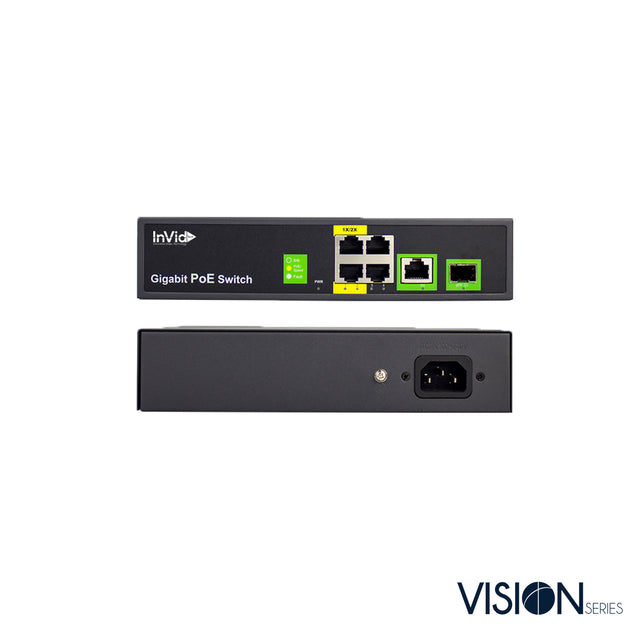

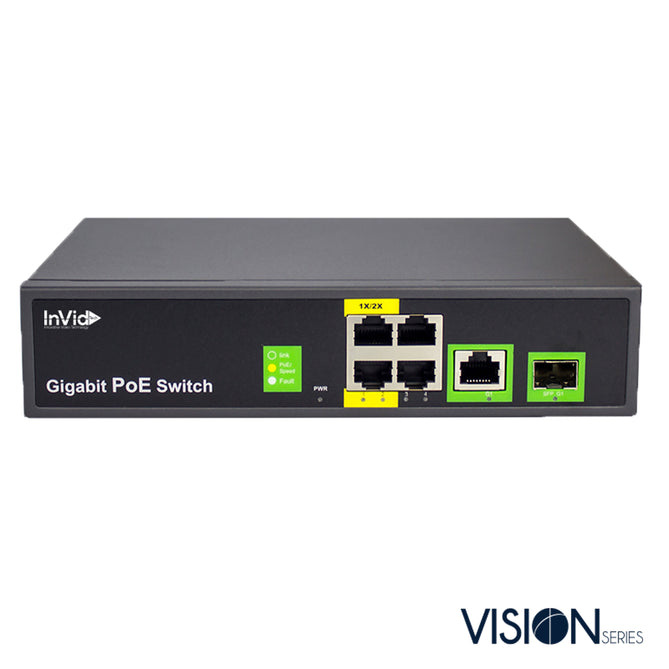

4 Port PoE Switch with 1 Up-link Ports. Full Gigabit
Features
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3af, IEEE802.3at
- Provides 5 10/100/1000Base-TX ports
- Provides 4 PoE injector and 65W Built-in power supply
- Extra 1 SFP Port
- High back-plane bandwidth 12Gbps
- IEEE802.3x Flow control
- EMI standards complies with FCC, CE class B
Power |
|
|
Power Supply |
Built-in power supply |
|
Voltage Range |
AC 100~240 V |
|
Consumption |
123.2W for PoE |
Ethernet |
|
|
Speed |
1-8 Port: 10/100/1000Mbps Uplink:10/100/1000Mbps |
|
Transmission Distance |
100Meter (328ft) |
Network Switch |
|
|
Ethernet Standard |
IEEE 802.3/802.3u/802.3ab/802.3af/at |
|
Switching Capacity |
18G |
|
Transfer Rate |
14,880 pps for 10Mbps |
|
148,800 pps for 100Mbps |
|
|
148,8000 pps for 1000Mbps |
|
|
MAC Address |
4 K MAC address table |
LINK/ACT |
|
|
On. Green |
The port is connecting |
|
Blinks |
The port is receiving or transmitting data |
|
Off |
The port is not linked successfully with the device |
POE |
|
|
On. Orange |
PD is connected |
|
Off |
No PD is connected or power forwarding fails |
|
PoE pin assignment |
V- ( Rj45 Pin1 ,2 ),V + (Rj45 Pin3,6 ) |
Working Environment |
|
|
Working Temperature |
32°F ~104°F (0℃~40℃) |
|
Storage Temperature |
-40°F ~158°F (-40℃~70℃) |
|
Humidity(Non-condesing) |
0-85% |
Mechanical |
|
|
Dimension(L*W*H) |
11.2 x 7.3 x 1.7 in (285 x 186.5 x 44mm) |
|
Out Shell |
Galvanized Sheet |
|
Color |
Gray |
