Description

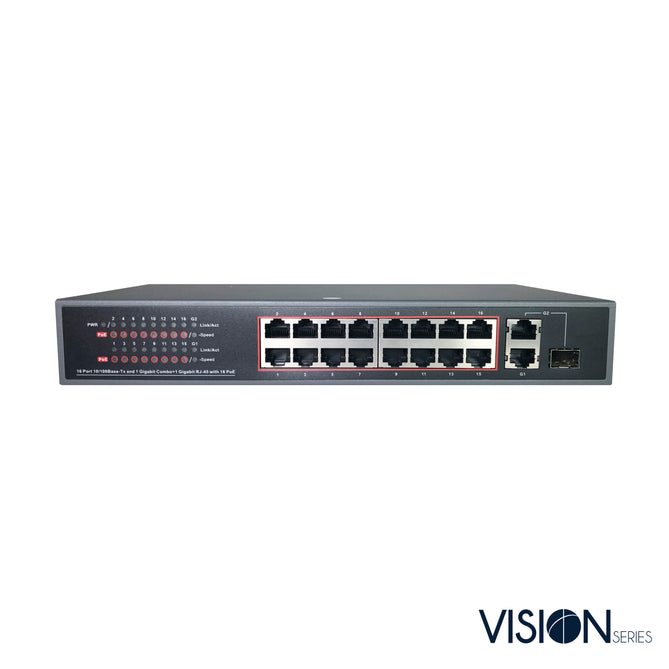

16 Port PoE Switch with 2 Up-Link Ports & 1 SFP Port
Features
- Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
- Provides 16 10/100Base-TX ports and 2 Gigabit uplink ports
- Provides 16 PoE Injector and 250W built-in power supply
- High back plane bandwidth 5.6 Gbps
- IEEE802.3x Flow Control
Product |
VIS-POE16-2 |
Power |
|
|
Power Supply |
Built-in power supply |
|
Voltage Range |
AC100-240V |
|
Consumption |
240W for 16PoE |
Ethernet |
|
|
Speed |
1~16 Port:10/100 Mbps G1 (Combo): 10/100/1000 Mbps & 1.25 Gbps G2: 10/100/1000 Mbps If Extension mode is on, distance up to 800’, but all ports 10m only |
|
Transmission Distance |
328 ft. for RJ-45 The distance is determined by the optical module The optical module is optional |
Network Switch |
|
|
Ethernet Standard |
IEEE802.3/802.3i/802.3u/802.3z/802.3ab/802.3af/802.3at |
|
Switching Capacity |
7.2G |
|
Transfer Rate |
14,880 pps for 10Mbps, 148,800 for 100 Mbps, 1,488,000 for 1000 Mbps |
|
MAC Address |
4K Mac address table |
| LINK/ACT |
|
|
On |
Green- The port is connecting |
|
Blinks |
The port is receiving or transmitting data |
|
Off |
The port is not linked successfully with the device |
POE |
|
|
On |
Green- PD is connected |
|
Off |
No PD is connected |
|
POE Pin Assignment |
No PD is connected or power forwarding fails |
Working Environment |
|
|
Working Temperature |
32°F~ 104°F (0-40°C) |
|
Storage Temperature |
-40°F ~ 158°F (-40~70°C) |
|
Humidity Non-Condensing |
0 ~ 85% |
Mechanical |
|
|
Dimensions (L x W x H) |
11 x 7 x 1.7in. (280 x 180 x 44mm) |
|
Color |
Gray |
