Description

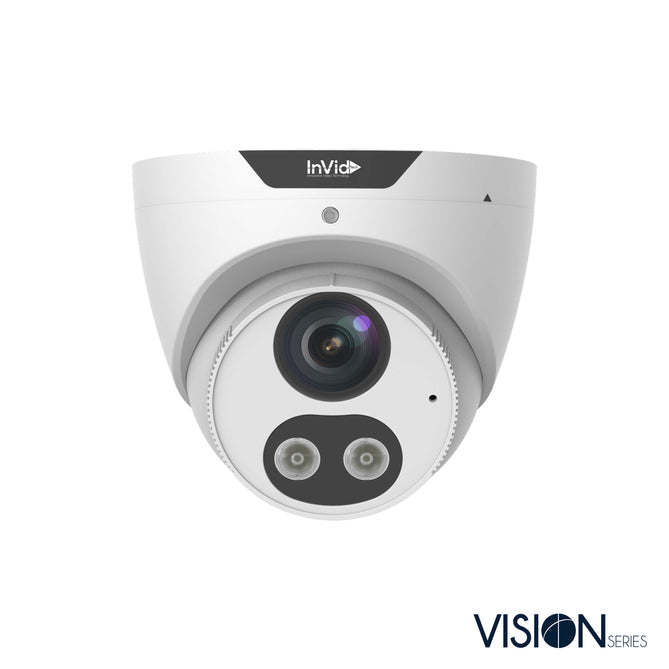

4 Megapixel IP Plug & Play, Outdoor Turret, Fixed Lens, up to 98’ IR Range, WDR, White Light & Deterrent, Built-in Mic/Speaker, SD Card Slot, PoE/12VDC
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- White Light & Deterrent: AI Triggered
- 4 Megapixel Resolution
- Fixed Lens
- True Day/Night with IR Range up to 98’
- Smart IRs
- Starlight Illumination
- Ultra H.265,H.265,H.264,MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
- Cloud Upgradeable
- Micro SD Slot: Up to 256GB
- Audio Input: Built-in Mic
- Audio Output: Built-in Speaker
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
|
|
Sensor |
1/2.7", 4.0 megapixel, progressive scan, CMOS |
|
Minimum Illumination |
Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
Adjustment angle |
Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360° |
|
WDR |
120dB |
|
S/N |
>56dB |
Lens |
|
|
Lens type |
2.8mm@F1.6 4.0mm@F1.6 |
|
Angle of view (H) |
101.1° 83.7° |
|
Angle of View (V) |
55.3° 44.9° |
|
Angle of View (O) |
111.1° 89.2° |
|
DORI Distance |
Lens Detect (ft) Observe (ft) Recognize (ft) Identify (ft) |
|
2.8mm 206.7 (63m) 82.7 (25.2m) 41.3 (12.6m) 20.7 (6.3m) |
|
|
4 295.3 (90m) 118.1 (36m) 59.1 18m) 29.5 (9m) |
|
Illuminator |
|
|
IR Range |
Up to 98ft (30m) IR range |
|
Wavelength |
850nm |
|
IR On/Off Control |
Auto/Manual |
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
H.264 code profile |
Baseline profile, Main profile, High profile |
|
Frame Rate |
Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; |
|
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|
|
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
U-code |
Support |
|
ROI |
Up to 8 areas |
|
Video Stream |
Triple streams |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
Image |
|
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
|
Digital Noise Reduction |
2D/3D DNR |
|
Smart IR |
Support |
|
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|
HLC |
Supported |
|
BLC |
Supported |
|
Defog |
Digital Defog |
Intelligent |
|
|
Smart intrusion prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
|
Face capture |
Support |
|
Statistical Analysis |
People counting, support tripwire people counting and area people counting |
Events |
|
|
Basic Detection |
Motion detection, tampering alarm, audio detection |
|
General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
Audio |
|
|
Audio Compression |
G.711 |
|
Audio Bitrate |
64 Kbps |
|
Two-way audio |
Supported |
|
Suppression |
Supported |
|
Sampling Rate |
8KHZ |
Storage |
|
|
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR, NAS (NFS) |
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
|
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|
Client |
InVid Vision (Mobile App) |
|
Vision Tools (IP Utility) |
|
|
InVid CMS |
|
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
|
Interface |
|
|
Built-in Mic |
Support |
|
Audio Sensitivity |
-32±3dB |
|
Built-in Speaker |
Support |
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
Certifications |
|
|
EMC |
FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
|
Safety |
IEC 62368-1 EN 62368-1 UL 62368-1 |
|
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
|
Protection |
Ingression protection: IP67 (IEC 60529-2013) |
General |
|
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|
Power consumption |
Max 7.5W |
|
Power Interface |
Ø 5.5mm coaxial power plug |
|
Dimensions (Ø x H) |
Φ4.4” x 3.7” (Φ111 x 95mm) |
|
Weight |
0.948lb (0.43kg) |
|
Material |
Metal + Plastic |
|
Working Environment |
-22°F ~ 131°F (-30°C ~ 55°C), Humidity: ≤95% RH (non-condensing) |
|
Storage Environment |
-22°F ~ 131°F (-30°C ~ 55°C), Humidity: ≤95% RH (non-condensing) |
|
Surge Protection |
4KV |
