Description

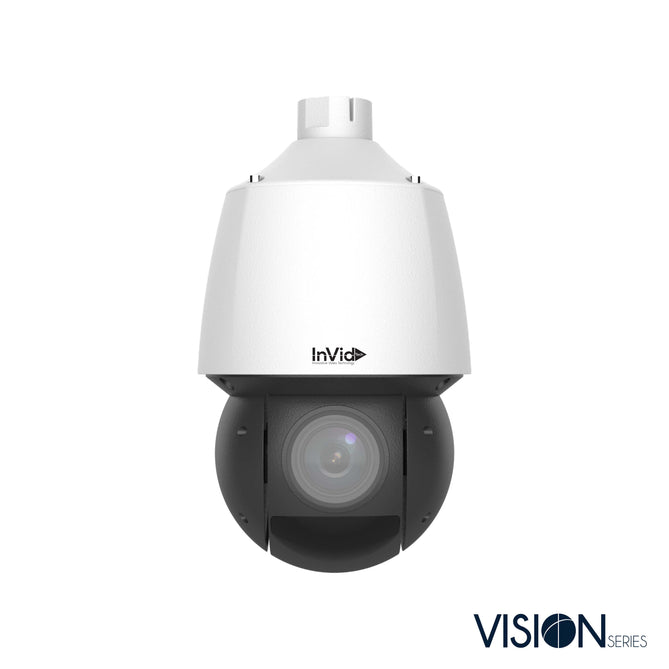

4 Megapixel IP Plug & Play, Outdoor PTZ, 4.8-120mm Motorized Auto-Focus, up to 328’ IR Range, WDR, SD Card Slot, DC12V/PoE+
Features
- True AI Human and VehicleClassification for Line Crossing and Intrusion Detection
- 4 Megapixel Resolution
- Motorized Auto-Focus 4.8-120 mm Lens
- True Day/Night with IR Range up to 328’
- Smart IRs
- Ultra 265,H.265,H.264, MJPEG
- 30 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Audio Input
- Audio Output
- IP67 Weatherproof
- IK10 Vandal Resistant
- 12VDC/PoE+ Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones &Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
|
|
Sensor |
1/2.8", 4.0 megapixel, progressive scan, CMOS |
|
Min. Illumination |
Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
WDR |
120dB |
|
S/N |
>56dB |
Lens |
|
|
Lens type |
4.8 ~ 120mm, AF automatic focusing and motorized zoom lens |
|
Digital Zoom |
16 |
|
Optical Zoom |
25 |
|
Iris |
Auto; F1.5 ~ F3.8 |
|
Angle of View (H) |
52.20°~2.74° |
|
Angle of View (V) |
30.81°~1.54° |
|
Angle of View (O) |
64.20°~3.23° |
DORI |
|
|
DORI Distance |
Lens (mm) Detect (ft) Observe (ft) Recognize (ft) Identify (ft) |
|
4.8 391.2 (119.3m) 156.5(47.7m) 78.2(23.9m) 39.1(11.9m) |
|
|
120 8120.1 (2475m) 3248(990m) 1624(495m) 812(247.5m) |
|
Illuminator |
|
|
IR Range |
Up to 328 ft (100m) IR range |
|
Wavelength |
850nm |
|
IR On/Off Control |
Auto/Manual |
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: 4MP(2688*1520),Max 30fps; |
|
Sub Stream: 2MP (1920*1080), Max 30fps; |
|
|
Third Stream: D1 (720*576), Max 30fps: |
|
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
U-code |
Support |
|
ROI |
Support |
|
Video Stream |
Triple streams |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
24 areas, up to 4 areas per scene |
Image |
|
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
Digital Noise Reduction |
2D/3D DNR |
|
Smart IR |
Support |
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/ 90°Anti-clockwise |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Digital Defog |
Intelligent |
|
|
Smart Intrusion Prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
|
Face Capture |
Support |
|
People Counting |
Support |
Events |
|
|
Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
|
Auto Tracking |
Support |
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio |
|
|
Audio Compression |
G.711U,G.711A |
|
Audio Bitrate |
64 Kbps |
|
Two-way Audio |
Support |
|
Suppression |
Support |
|
Sampling Rate |
8 kHz |
Storage |
|
|
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR,NAS(NFS) |
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
|
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|
Clients |
InVid Vision (Mobile App) |
|
Vision Tools (IP Utility) |
|
|
InVid CMS |
|
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
Pan & Tilt |
|
|
Pan Range |
360° (endless) |
|
Pan Speed |
0.1°/s ~ 200°/s Preset speed: 240°/s |
|
Tilt Range |
–15° ~ 90° (auto reverse) |
|
Tilt Speed |
0.1°/s ~ 120°/s Preset speed: 200°/s |
|
Number of Presets |
1024 |
|
Patrol |
Preset patrol, Route patrol, Recorded patrol |
|
Patrol StayTime |
15s~1800s |
|
Preset Image Freeze |
Support |
|
Home Position |
Support |
Interface |
|
|
Audio I/O |
1/1 |
|
Alarm I/O |
2/1 |
|
Serial Port |
1 RS485 |
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|
Video Output |
1 BNC |
Certification |
|
|
EMC |
FCC Part 15, EN 55032:2015, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3-2013 |
|
Safety |
IEC 62368-1, EN 62368-1 , UL 60950-1 |
|
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
|
Protection |
Ingression protection: IP67 (IEC 60529-2013) Vandal resistant: IK10 (IEC 62262:2002) |
General |
|
|
Power |
DC12V(±25%,3A), PoE+(IEEE 802.3at) |
|
Power consumption: MAX 21W |
|
|
Power Interface |
Ø 5.5mm coaxial power plug |
|
Dimensions (Ø x H) |
Ø6.5” x 11.6” (Ø166 x 295mm) |
|
Weight |
6.72lb (3.05kg) |
|
Working Environment |
-40°F ~ 158°F (-40℃~70℃)，Humidity: ≤95% RH (non-condensing) |
|
Storage Environment |
-40°F ~ 158°F (-40℃~70℃)，Humidity: ≤95% RH (non-condensing) |
|
Surge Protection |
6KV |
|
Vandal Resistant |
IK10 |
|
Ingress Protection |
IP67 |
|
Reset Button |
Support |
