Description

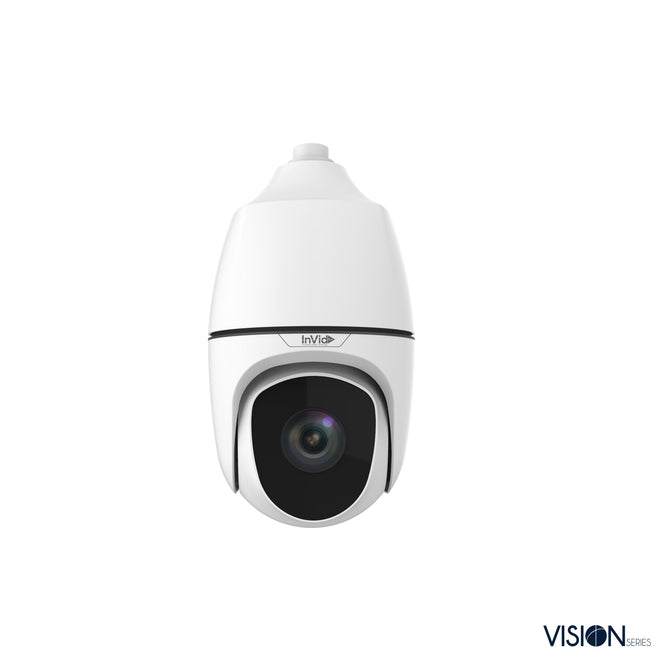

2 Megapixel IP, Outdoor PTZ, 44x with Auto-Tracking, Starlight Illumination, 820’ EXIR Range, WDR, Audio Input/Output, SD Card Slot, 24VAC
Features
- 2 Megapixel (1920 x 1080) Resolution
- 44x Optical Zoom
- Auto-Tracking
- Starlight Illumination
- True Day/Night with Smart IR Range up to 820’
- H.265/H.264/MJPEG Compression
- Smart Analytics
- ONVIF
- True Wide Dynamic Range
- CVBS Video Output
- Audio Input/Output
- IP66 Weather Resistant
- Operates to -40° F
- Micro SD Slot: Up to 256GB
- 24VAC/DC
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Camera |
VIS-P2PTZXIRT44 |
|
Sensor |
1/2.8", progressive scan,2.0megapixel, CMOS |
|
Lens |
5 ~ 220 mm , AF automatic focusing and motorized zoom lens |
|
Dori Distance |
Lens: 5mm 254ft (Detect), 101ft (Observe), 50ft (Recognize), 25ft (Identify) Lens: 220mm 11,197ft (Detect), 4478ft (Observe), 2237ft (Recognize), 1118ft (Identify) |
|
Digital Zoom |
16 |
|
Optical Zoom |
44 |
|
Angle of View (H) |
60.6°~ 1.8° |
|
Angle of View (V) |
34.8~°0.8° |
|
Angle of View (O) |
74.5°~2.1° |
|
Shutter |
Auto/Manual; shutter time: 1/6 s ~ 1/100000 s |
|
Minimum Illumination |
Colour: 0.002Lux (F1.2, AGC ON), 0 lux with IR |
|
Iris |
Auto/Manual; F1.2 ~ F3.5 |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Digital noise reduction |
2D/3D DNR |
|
S/N |
>52dB |
|
IR Range |
Up to 820 ft (250m) |
|
WDR |
120dB |
Video |
|
|
Video Compression |
Ultra 265,H.265, H.264, MJPEG |
|
H.264 code profile |
Baseline profile, Main Profile, High Profile |
|
Frame Rate |
Main Stream:2MP (1920×1080):Max. 60 fps; Sub Stream:2MP (1920×1080):Max. 60 fps; Third Stream: D1 (720×576): Max. 60 fps |
|
HLC |
Supported |
|
BLC |
Supported |
|
EIS |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 24 areas |
|
ROI |
Up to 8 areas |
|
Motion Detection |
Up to 4 areas |
Smart |
|
|
Behavior Detection |
Intrusion, cross line, motion detection, Auto tracking |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio |
|
|
Audio Compression |
G.711 |
|
Two-way audio |
Supported |
|
Suppression |
Supported |
|
Sampling Rate |
8 KHZ |
Storage |
|
|
Edge Storage |
Micro SD, up to 256GB |
|
Network Storage |
ANR |
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
Pan & Tilt |
|
|
Pan Range |
360° (endless) |
|
Pan Speed |
0.1°/s ~ 240°/s, Preset speed: 300°/s |
|
Tilt Range |
–15° ~ +90° (auto reverse) |
|
Tilt Speed |
0.1° ~ 160°/s, Preset speed: 240°/s |
|
Number of Presets |
1024 |
|
Patrol |
Preset patrol, route patrol, recorded patrol |
|
Home Position |
Supported |
Interface |
|
|
Audio I/O |
Audio cable 1 Input: impedance 35 kΩ; amplitude 2 V [p-p], 1 Output: impedance 600 Ω; amplitude 2 V [p-p] |
|
Alarm I/O |
2/1 |
|
Serial Port |
1 RS485 |
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
|
Video Output |
1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
General |
|
|
Power |
24 V±25% AC (Default), 24 V±25% DC |
|
|
Power consumption: 16 ~ 56W |
|
Dimensions(ØxH) |
Φ10.6” x 19.6” (Φ270mm×496.7mm) |
|
Weight |
21.4lb (9.69kg) |
|
Working Environment |
-40°F ~ 158°F (-40°C ~ 70°C), Humidity:10%~95% RH(non-condensing) |
|
Ingress Protection |
IP66 |
|
Heat |
Built-in Heater and Temperature control system |
|
Reset Button |
Supported |
|
Certification |
UL |
