Description

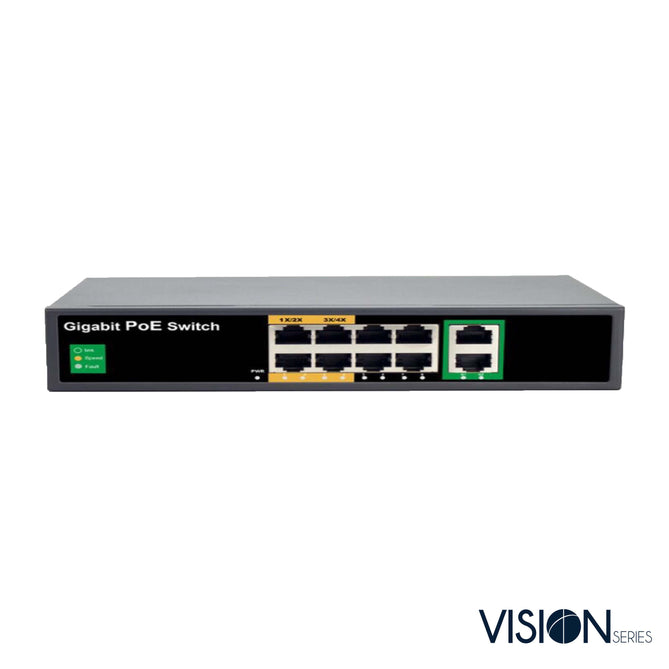

8+ 2 xRJ45 Gigabit, 125W
Features
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX,IEEE 802.3ab 1000BASE-T
- 8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
- 2-Port 10/100/1000Mbps RJ45 interface for uplink
- Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
- Up to 8 IEEE 802.3af devices powered
- Supports PoE Power up to 15.4 watts for each PoE port
- Up to 4 IEEE 802.3at devices powered
- Supports PoE Power up to 30 watts for each PoE port
- 96/120-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 2M packet buffer
- 10K Jumbo frame supports at 1000Mbps duplex mode
- IEEE 802.1Q VLAN packet transparency support
- Automatic address learning and address aging
- Made of metal, desktop size and wall-mount design
Power Supply |
|
|
Power Supply Mode |
Mains on load |
|
Voltage Range |
DC52V |
|
Power Consumption |
The device <5W, POE power supply <125W |
Network Port Parameter |
|
|
Network Ports |
1~8 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink :2 10/100/1000Mbps RJ45 |
|
Transmission Distance |
1~8 Ethernet Port: 0~330ft 2 uplink Ethernet Port: 0~100m |
|
Transmission Media |
1~8 Ethernet Port: Cat5e/6 standard UTP cable |
|
POE Agreement |
IEEE802.3 af/at standards |
|
PoE Power Supply Mode |
End-span method |
|
PoE Power Supply Wattage |
Each port≤30W,Whole device<96/120W |
Network Switch Specification |
|
|
Network Standard |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T |
|
Swap Mode |
Store-and- forward |
|
Switch Capacity |
20Gbps |
|
MAC Address List |
8K |
Status Indicators |
|
|
Power Indicator Light |
One power light (green) |
|
Network Port LED |
1~10 port (green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data |
Protection Level |
|
|
Surge Immunity |
Level 3, executive standard: IEC61000-4-5 |
|
Electrostatic Protection |
1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard: IEC61000-4-2 |
Operating Environment |
|
|
Working Temperature |
14°F ~131°F (-10°C ~ 55°C) |
|
Storage Temperature |
-40°F ~ 185°F (-40°C ~ 85°C) |
|
Humidity (non-congeal) |
0~95% |
Mechanical Attributes |
|
|
Dimensions (L*W*H) |
8 x 5.5 x 1.7 in (202 x 140 x 44mm) |
|
Color |
Black |
|
Weight |
Approx. 1.9 lb (0.85kg) |
Reliability |
|
|
Mean time between failures (MTBF) |
>50000h |
