*Special Order Product. For Lead Time Call Sales: 631-388-5700*

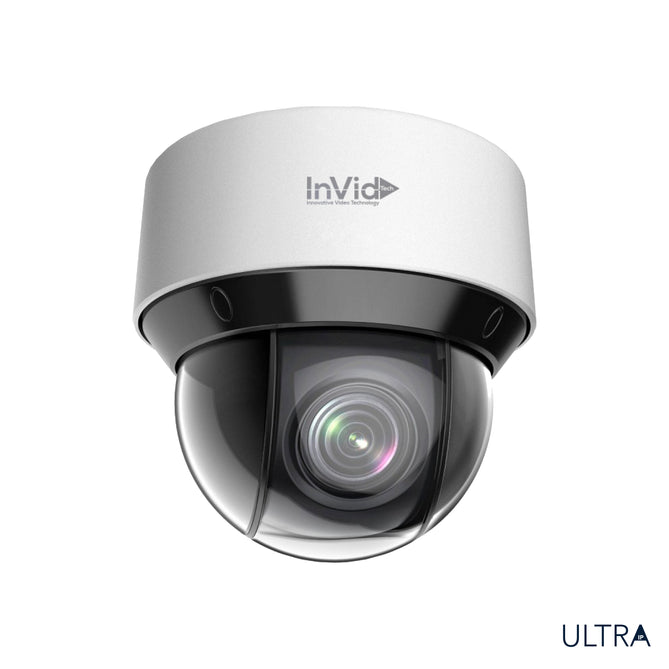

4 Megapixel IP PTZ, 25x Zoom, WDR, 150’ IR Distance, 12VDC/PoE
Features
- 4 Megapixel (2560 x 1440) Resolution
- H.265/H.265+/H.264/H.264+ Compression
- True Day/Night
- 25x Optical Zoom
- True WDR
- IR Range up to 150’
- Audio Input/Output
- IP66 Weather Resistant
- SD Card Storage, 128 GB
- 12VDC/PoE+ Operation
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
- Free MAC client software available
|
Model Number |
ULT-P4PTZXIR25X |
|
Image sensor |
1/2.5” Progressive Scan CMOS |
|
Min. illumination |
Color: 0.005 Lux@(F1.6, AGC On) ; B/W: 0.001Lux@(F1.6, AGC On) ; 0 lux with IR |
|
White balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC |
Auto / Manual |
|
Digital noise reduction |
3D DNR |
|
Backlight compensation |
Support |
|
Wide Dynamic Range |
True WDR |
|
Shutter speed |
1/1~ 1/30,000s |
|
Day & Night |
IR Cut Filter |
|
Digital zoom |
16X |
|
Focus mode |
Auto / Semiautomatic / Manual |
|
Privacy Mask |
8 privacy masks programmable |
|
Focal length |
4.8 ~ 120mm, 25X |
|
Zoom speed |
Approx. 3.2s (Optical Wide-Tele) |
|
Angle of view |
57.6 – 2.5 degree (Wide-Tele) |
|
Min. working distance |
10 ~ 1500mm (Wide-Tele) |
|
Aperture range |
F1.6 ~ F3.5 |
|
Proportional zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of preset |
300 |
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
Park action |
Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan |
|
Power-off memory |
Support |
|
PTZ position display |
Support |
|
Scheduled task |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/ Dome reboot/ Self-test action / Alarm output |
|
Alarm I/O |
2/2 |
|
IR distance |
Up to 150 ft |
|
IR intensity |
Automatically adjusted, depending on the zoom ratio |
|
Ethernet |
10Base-T / 100Base-TX, RJ45 connector |
|
Max. image resolution |
2560 × 1440 |
|
Frame rate |
60Hz: 30 fps (2560 x 1440), 60 fps (1920 x 1080) |
|
Image compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|
Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, |
|
|
TCP, UDP,IGMP, ICMP, DHCP, PPPoE |
|
Simultaneous live view |
Up to 6 |
|
Audio |
1/1 |
|
SD memory card |
Built-in micro SD card slot, up to 128GB |
|
Security measures |
User authentication (ID and PW), Host authentication (MAC address), IP address filtering |
|
Power |
12VDC/PoE+(802.3at), Max 18W |
|
Working temperature |
-30°C ~ 65°C (-22°F ~ 149°F) |
|
Humidity |
95% or less |
|
Protection level |
IP66 (outdoor model); TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Dimensions |
Φ169×161mm (Φ6.67”×6.34”) |
|
Weight |
Approx. 2Kg (5.40lbs) |
