Description

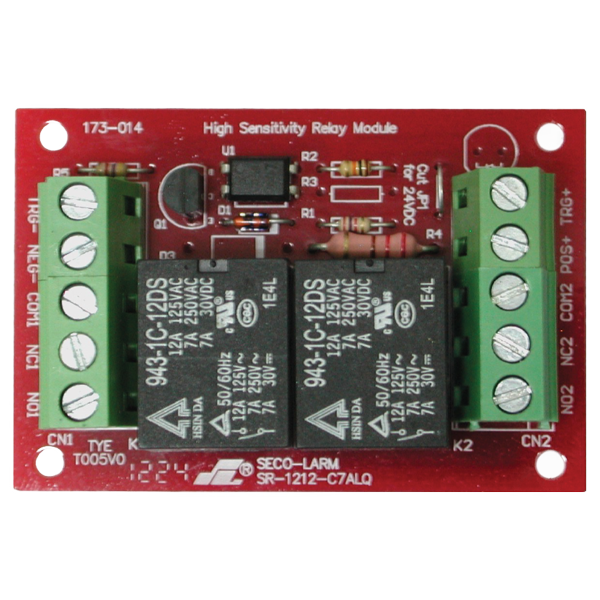

- 3~24VDC Low Trigger Voltage, High Sensitivity (1mA Trigger), Low Current Drain (60mA), Two 7A Form C SPDT Relays
- Relay module for any application where relays are required
- Relays are pre-wired to easy-to-install modules
- Screw terminals allow easy installation without soldering or other time-consuming connections
- Wide-selection of other relays: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity
- SR-2112-C7AQ/10: Ships with 10 relay modules on a single board, with easy break-away feature for use as individual modules
Specifications
| Operating Voltage | 12/24 VDC |
| Trigger Voltage | 3~24 VDC |
| Voltage Selection | Jumper |
| Relay Type | SPDT |
| Relay Ratings | 7A |
| No. of Relays | 2 |
| Current Draw | 60mA@12/24VDC |
| Dimensions | 2-3/8″ x 1-9/16″ x 3/4″ (60 x 40 x 20 mm) |
| Weight | 1.3-oz (37g) |
