Description

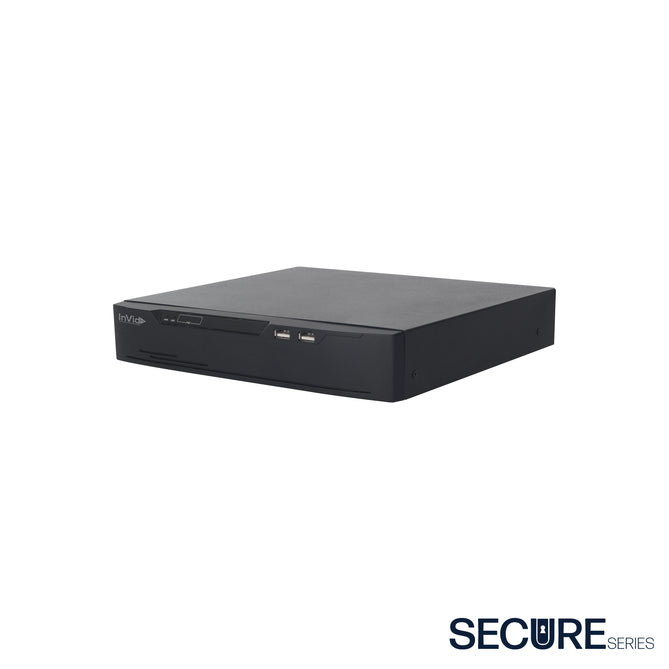

4 Channel NVR with 4 Plug and Play Ports
Features
- 4 Channel with 4 Plug & Play Ports for easy camera setup PoE (Power Over Ethernet) available on all ports
- Up to 8 Megapixel Resolution Recording
- 40 Mbs Bit Rate Input
- Works with ONVIF or other supported IP cameras
- Local HDMI main monitor output with 4K Support
- Local VGA main monitor output up to 1080p
- H.265/H.265+/H.264/H.264+ video compression
- Free Central Management Software (CMS)
System |
|
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
Video and Audio |
|
|
IP Camera Input |
4 Channel |
|
Audio I/O |
1/1, RCA |
|
Two-way Talk |
Yes |
Display |
|
|
Interface |
1 HDMI, 1 VGA |
|
Resolution |
HDMI: 3840×2160,1920×1080,1440×900, 1280×1024 VGA: 1920×1080, 1280×1024, 1280×720 |
|
Decoding Capacity |
1ch 8MP/4ch 1080P@30fps |
|
Multi-screen Display |
1/4 |
Recording |
|
|
Compression |
H.265+/ H.265/H.264+/H.264 |
|
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/720P/ D1&etc. |
|
Record Rate |
40Mbps |
|
Bit Rate |
100Kbps ~ 6Mbps Per Channel |
|
Record Mode |
Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in |
|
Record Interval |
Post-record: 30 ~ 60 sec |
Video Detection and Alarm |
|
|
Trigger Events |
Recording, Buzzer, Push message, Pop up message. |
|
Video Detection |
Motion Detection, Video Loss, Camera Tamper |
|
Alarm In/Out |
4/1 |
Playback and Backup |
|
|
Sync Playback |
4/1 |
|
Search Mode |
Time /Date, Alarm, Picture grid, Event |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom |
|
Backup Mode |
USB Device |
Network |
|
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP |
|
Max. User |
Access 9 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF, SDK, CGI |
Storage |
|
|
Internal HDD |
1 SATA Ports, up to 12TB for each HDD |
Interface |
|
|
Interface |
1 RJ-45 port (10/100Mbps) |
|
PoE Interface |
4ch 100Mbps, IEEE 802.3af |
|
PoE Max Power |
40W |
|
USB |
2 ports (USB 2.0 x2) |
General |
|
|
Power Supply |
DC48V/1.25A |
|
Power Consumption |
< 5W (without HDD) |
|
Operating Conditions |
14 °F ~ 122 °F (-10 °C ~ 50 °C) |
|
Storage Conditions |
Less than 90% RH |
|
Certifications |
CE/FCC |
|
Dimensions |
10.03” x 9.25” x 1.87 (255×235×47.5mm) |
|
Net Weight |
2lb (0.9kg) (No disk) |
