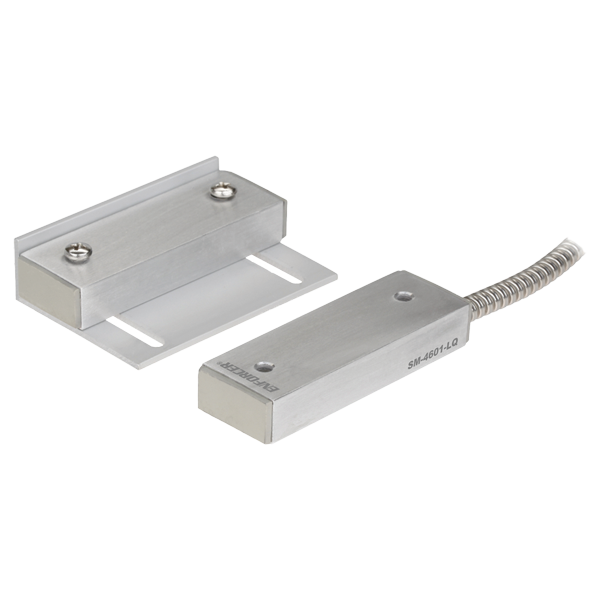

Description
- Useful for industrial situations where a wide-gap, surface mount contact is needed
- Rugged aluminum housing
- IP54 weather-resistant and sealed for outdoor use
- Contact Type: SPST, iridium-plated to have a high melting point and Vickers hardness, for higher power handling and long life
- Mounting bracket included
- 36″ (91cm) wire leads enclosed in armored cable
- 3″ (76mm) Gap
- Lifetime limited warranty
Specifications
| Loop Type | N.C. |
| Operation Gap | 3″ (76mm) |
| Material – Case | Aluminum |
| Material – Terminals | 36″ (91cm) armored leads |
| Contacts | Iridium-plated |
| Contact Rating | 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 3″ x 1″ x 1/2″ (76.2 x 25.4 x 12.7 mm) |
| Magnet Dimensions | 3″ x 1″ x 1/2″ (76.2 x 25.4 x 12.7 mm) |
| Magnet Type | Rare-earth neodymium |
| IP Rating | Weather-resistant IP54 |
