Description

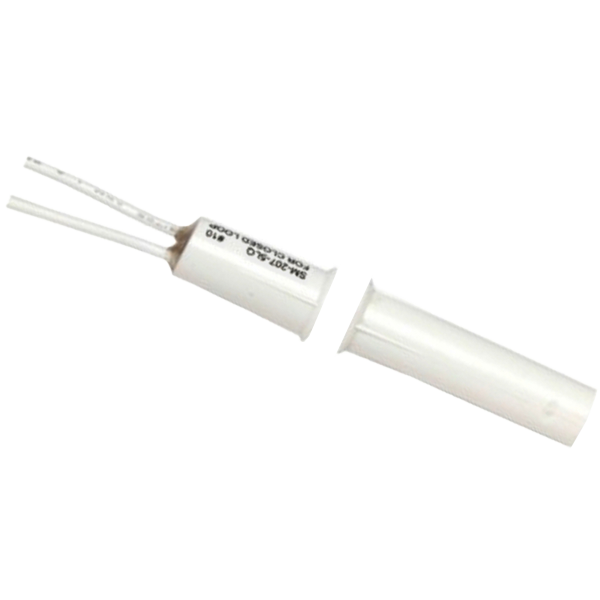

- Used for protecting sliding doors and windows where space is limited
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- Unique glue/epoxy compound protects reed switch
- 1″ (25mm) Gap, N.C., with Stubby 3/4” (19mm) Switch
- 3/8“, Press-fit mount
- 15″, (38cm) wire leads
- Lifetime limited warranty
- Pack of 10
Specifications
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1″, (25mm) |
| Color | White |
| Material – Case | High-impact ABS plastic / epoxy compound |
| Material – Contact | Deactivated rhodium on gold under-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |

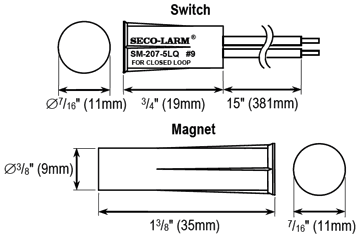

| Switch Dimensions | 3/4″ x 7/16″ x 3/8″ (19 x 11 x 9 mm) |
| Magnet Dimensions | 1-3/8″ x 7/16″ x 3/8″ (35 x 11 x 9 mm) |
| Magnet Type | Alnico 5 |
