Description

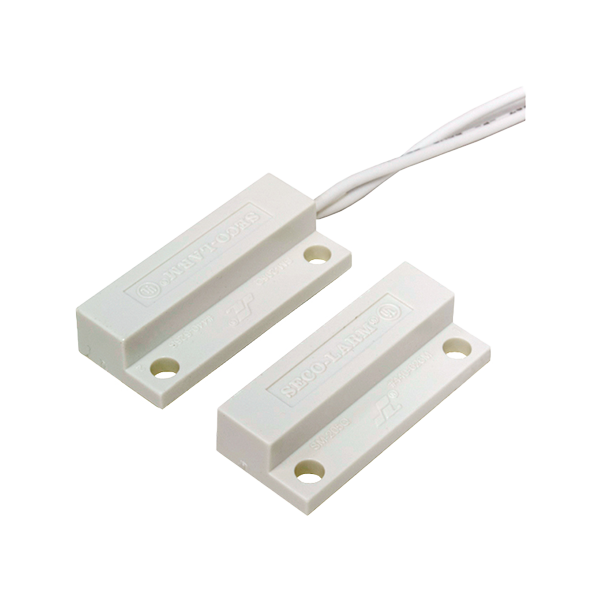

- Miniature “flange type” surface-mount magnetic contacts are perfect for sliding doors and windows where space is limited
- Screw or adhesive mount
- Mounting flange breaks off for extra miniature size
- High-impact weatherproof white ABS plastic case
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- 15″ (38cm) leads extend from side of switch
- 3/4” (19mm) Gap
- Lifetime limited warranty
- Pack of 10
Specifications
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 3/4″ (19mm) |
| Terminals | 15″ (38cm) leads from side |
| Color | White |
| Material – Case | High-impact ABS plastic |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |

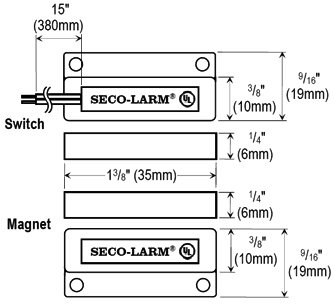

| Switch Dimensions | 1-1/4″x5/16″x1/4″ (32x8x6 mm) |
| Magnet Dimensions | 1-1/4″x5/16″x1/4″ (32x8x6 mm) |
| Magnet Type | Alnico 5 |
