Description

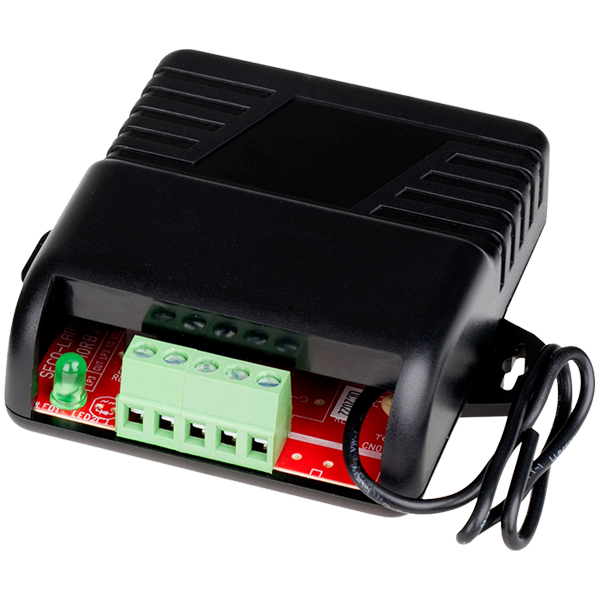

The SK-910RBQ series of wireless receivers meet the growing demand for receivers with multiple, independently-controlled output functions. These RF receivers are compatible with both code hopping and fixed code transmitters. The receivers can be used to remotely control a variety of home automation devices such as garage door openers, lights, motorized gates, lifts, or other devices.
- Five programmable relay output modes:
- 4-Second momentary
- 1-Second momentary
- Toggle (ON/OFF)
- Validity
- Latch
- 11~24 VAC/VDC Operation
- Range: Up to 500ft (150m)*
- Controls garage doors, gates, house lights, alarm panels or other devices via remote
- LED indicates RF reception, learn mode entered, transmitter learned, memory cleared, and relay output mode
- Pushbutton programming, no need to cut jumpers
- Up to 15 transmitter button codes can be learned
*Operating range will vary greatly depending on the installation and operating environment.
Specifications
| Type | WIRELESS – Single-Channel RF Receiver |
| Operating voltage | 11~24 VAC/VDC |
| Range | Up to 500′ (150m) with SECO-LARM transmitter. Range will vary. |
| Relay Rating | Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel |
| Current Draw | 8mA@12VDC (standby), 30mA/channel @12VDC (activated) |
| Extended Range Antenna Compatible | Yes (SK-91ERSD) |
| Connectors | 5 Quick-connect screw terminals (+, -, with NO/NC/COM) |
| Dimensions | 3-1/8″ x 2-9/16″ x 1″ (80 x 65 x 25 mm) |
