Description

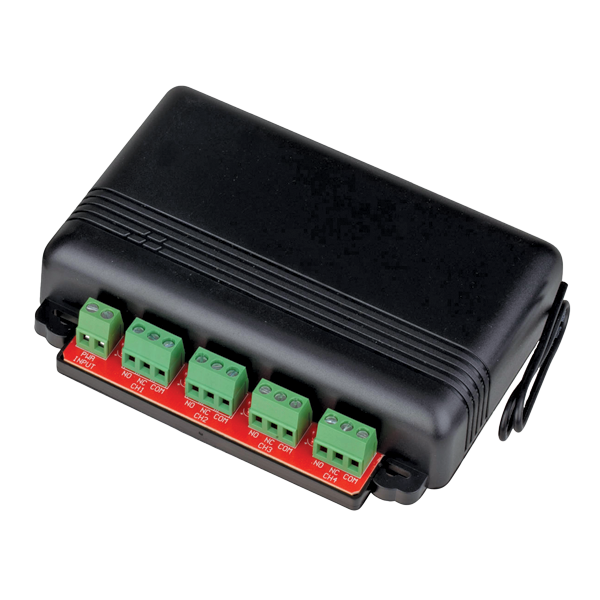

The SK-910R3Q and SK-910R4Q are wireless receivers that meet the growing demand for multi-channel receivers with multiple and independently controlled output modes. RF receivers can be used to control a variety of home automation devices such as garage door openers, lights, motorized gates, lifts, or other devices remotely. These receivers are compatible with both fixed code and code hopping transmitters. Code hopping transmitters, such as SECO-LARM CODEBUMP™ transmitters, change codes every time transmitter sends a signal for extra security.
- Four programmable relay output modes:
- Momentary (1, 2, 3, 4, 5, 10, 30, or 60 seconds)
- Toggle (ON/OFF)
- Latch
- Validity
- 11~24 VAC/VDC Operation
- Range: Up to 500ft (150m)*
- Controls garage doors, gates, house lights, alarm panels or other devices via remote
- LED indicates RF reception, learn mode entered, transmitter learned, memory cleared, and relay output mode
- Pushbutton programming, no need to cut jumpers
- Up to 15 transmitter button codes can be learned
*Actual range will vary greatly depending on the installation and operating environment.
Specifications
| Type | WIRELESS – ENFORCER 4-Channel RF Receiver |
| Operating voltage | 11~24V AC/DC |
| Range | Up to 500′ (150m) with SECO-LARM transmitter |
| Relay Rating | Four Form “C” dry relay contacts (NO/NC/COM); rated 10A@24VDC |
| Current Draw | ~12mA@12VDC (standby), 50mA@12VDC per channel, activated |
| # of Stored Transmitter Codes | 15 per channel, 60 per receiver |
| Extended Range Antenna Compatible | Yes (SK-91ERSD) |
| Compatible Transmitters | Fixed-Code Models (SK-919 Series) CODEBUMP Models (SK-917T Series) |
| Relay Output Modes | Programmable independent outputs: timed momentary (1, 2, 3, 4, 5, 10, 30, 60 sec.), toggle (ON/OFF), latched, continuous |
| Connectors | Screw terminals: Power (+,-), 1 relay per channel (NO/NC/COM) |
| Dimensions | 5-5/16″ x 3-15/16″ x 1-1/8″ (135 x 100 x 27.5 mm) |
| RF Codes | 18 quintillion, for ENFORCER CODEBUMP remotes. 68 billion, for ENFORCER fixed-code remotes |
