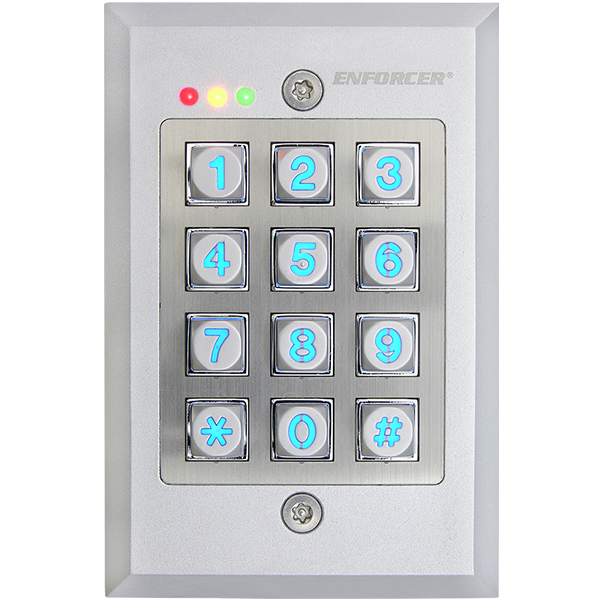

Description
- 12~24 VAC/VDC auto-adjusting operation
- Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
- Output #1: Form C relay, 1A@30VDC max.
- Output #2: Transistor ground, 100mA@24VDC
- Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Tamper output: N.C. Dry contact, 50mA@24VDC max
- Mounts to standard single-gang back box
- IP66 Weatherproof rating
- Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
- All features are programmed directly from the keypad: No need for an external programmer
- EEPROM Memory protects programmed information in case of power loss
- Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2
- Duress code signals a silent alarm if an authorized user is forced to open the door under duress
- Egress input lets users exit the premises without keying in the code
- Door sensor input for anti-tailgating operation
- Interlocking input for connecting to a second keypad
Specifications
| Operating Voltage | 12~24 VDC/VAC |
| Current Draw – Standby | 15mA@12VDC |
| Current Draw – Keypress | 40mA@12VDC |
| Current Draw – Output 1 Active | 65mA@12VDC |
| Current Draw – Output 1 & 2 Active | 66mA@12VDC |
| Current Draw – Total Max | 100mA@12VDC |
| Output- #2 Transistor Ground | 100mA@24VDC |
| Output 1 | 1A@30VDC |
| Output – Duress | 100mA@24VDC |
| Output – Interlock | 100mA@24VDC |
| Output- Tamper | 50mA@24VDC |
| IP Rating | Weatherproof IP66 |
| Input – Egress | N.O. Ground |
| Input – Door Sensor | N.C. Ground |
| Input – Door Inhibit | N.O. Ground |
| Operating Temperature | -4°~158° F (-20°~70° C) |
| Operating Humidity | 5~95% Non-condensing |
| Dimensions | 4-3/4″x3-1/8″x1-13/16″ (120x80x46mm) |
| Weight | 16.2-oz (300g) |
