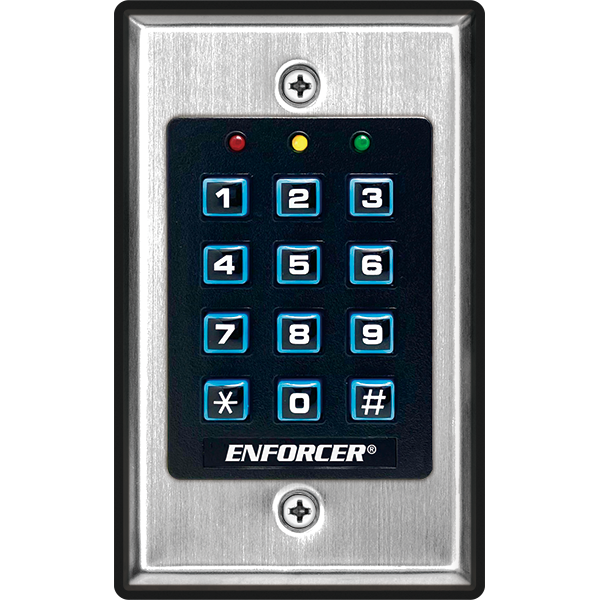

Description
- Up to 1,000 possible user codes (4-8 digits)
- Output: Form C relay, 1A@30VDC max.
- Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Always-on backlit keypad
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for onetime or limited-time use (1~99 hours)
- Durable and attractive stainless-steel faceplate
- Programmable delayed egress input lets users exit the premises without keying in the code
- EEPROM Memory protects programmed information in case of power loss
- 12~24 VDC/VAC Auto-adjusting operation
- Tamper output: N.C. Dry contact, 50mA@24VDC max.
- Mounts to a standard single-gang back box (surface-mount back box included)
- Programmable wrong-code lockout
- Real-time clock to auto-disable access at specific times
- All features are programmed directly from the keypad: No need for an external programmer
Specifications
| Operating Voltage | 12~24 VDC/VAC |
| Current Draw – Standby | 15mA@12VDC |
| Current Draw – Keypress | 30mA@12VDC |
| Current Draw- 1 Relay Active | 55mA@12VDC |
| Current Draw – Total Max | 90mA@12VDC |
| Relay Output- #1 | 1A@30VDC, Form C |
| Relay Output- Tamper | 50mA@24VDC |
| Egress Inputs | N.O. ground |
| Operating Temperature | -4°~158° F (-20°~70° C) |
| Operating Humidity | 5~95% Non-condensing |
| Dimensions | 4-5/8″x2-7/8″x1-1/2″ (117x73x38 mm) |
| LED Status- Red | Inhibit /lockout mode |
| LED Status- Amber | Flashes to show the keypad status (see chart) |
| LED Status- Green | Any output activated |
| Weight | 6-oz (170 g) |
