Description

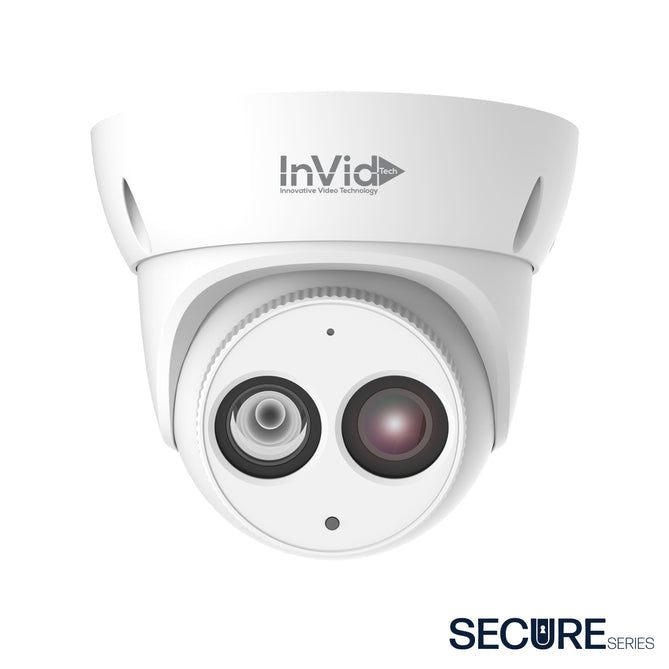

8 Megapixel IP Plug & Play, Outdoor Turret, 98’ IR Range, WDR, PoE/12VDC
Features
- 8 Megapixel (3840 x 2160) Resolution
- Fixed Lens
- H.265, H.264, MJPEG Compression
- True WDR
- 98’ IR Range
- IP Plug & Play
- True Plug & Play with Ultra, Paramont, & Vision
- Built-in Junction Box
- IP66 Weather Resistant
- Withstand up to -40F Operation
- ONVIF
- 12VDC/PoE Operation
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform through the NVR
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Mac Client
Camera |
|
|
Image Sensor |
1/2.8” Progressive Scan CMOS |
|
Effective Pixels |
3840(H)×2160(V) |
|
Electronic Shutter |
Auto/Manual, 1/5 ~ 1/20,000s |
|
Min. illumination |
Color: 0.05 Lux @ (F1.2, AGC ON) , B/W: 0 Lux @ (IR LED ON) |
|
S/N Ratio |
55dB |
|
Day/Night |
Auto(ICR) |
|
True WDR |
Support |
|
IR Range |
Up to 98 ft (30 m) |
|
IR On/Off Control |
Auto/Manual |
|
Pan/Tilt/Rotation Range |
Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚ |
Lens |
|
|
Lens Type |
Fixed Focus |
|
Iris |
Fixed Iris |
|
Focal Length |
2.8 mm |
|
F Number |
F2.0 |
|
Angle of View |
H: 102°, V: 55.6° |
Video |
|
|
Compression |
H.265/H.264/MJPEG |
|
Max. Resolution |
8MP (3840×2160) |
|
Streaming Capability |
3 Streams |
|
Stream/Frame Rate |
Stream1: 3840×2160, 3072×2048, 2592×1520, 1920×1080 @ 20fps Stream2: D1, VGA, CIF, QVGA @ 25/30fps Stream3: VGA, CIF, QVGA @ 25/30fps |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
Stream1: 500kbps~16Mbps Stream2: 10kbps~6Mbps Stream3: 10kbps~3Mbps |
|
Image Enhancement |
HLC / BLC / Anti-shake / WDR |
|
White Balance |
Support |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
2D/3D DNR |
|
Smart IR |
Support |
|
Mirror |
Support |
|
Region of Interest |
Support |
|
Motion Detection |
Support |
|
Privacy Masking |
Support |
Network |
|
|
Protocols |
IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
|
Interoperability |
ONVIF Profile S/G/Q/T, SDK, CGI |
|
Streaming Method |
Unicast |
|
Max. User Access |
10 Users |
|
Web Viewer |
<IE11, Chrome, Firefox, Microsoft Edge |
|
Management Software |
InVid View |
Interface |
|
|
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
Reset Button |
Support |
|
Storage |
Built-in Micro SD slot, up to 256G |
Electrical |
|
|
Power Supply |
DC12V/POE (IEEE 802.3af) |
|
Power Consumption |
Max 6 W |
|
Operating Temperature |
-40°F ~ 131°F (-40°C ~ 55°C ) |
|
Operating Humidity |
Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Certifications |
CE/FCC |
|
Casing |
Metal |
|
Dimensions |
φ4.65” × 4.06” (φ118 × 103mm) |
|
Net Weight |
1.19 lb (0.54 kg) |
