Description

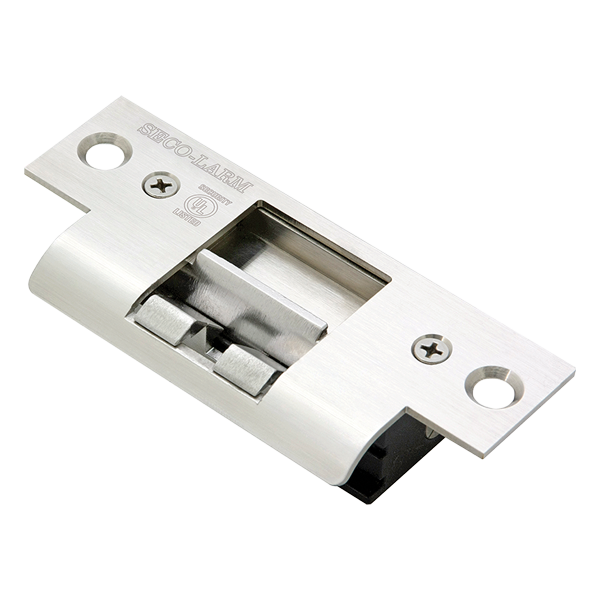

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.
- UL 1034 Listed
- Field-selectable for fail safe or fail-secure operation
- Can be used with virtually any cylindrical door locking system
- Can use with an optional digital keypad
- Suitable for office-type applications
- Reversible non-handed design fits either right hand or left-handed doors
- Shallow design for use with most metal doors
- Powered by a solenoid, not a buzzer coil
- Static strength – 1,500 lbs. (680N)
- Stainless-steel keeper for strength and long life
- Non-polarized connection
- Tested to 100,000 cycles (UL Tested)
- No horizontal or vertical adjustment
Specifications
| Operating Voltage | 12/24 VDC |
| Operation | Fail-secure or Fail-safe |
| Current Draw | 300mA@12VDC, 150nA@24VDC |
| Static Strength | 1,500 lbs. (680kg) |
| Dynamic strength | 70-ft-lbs. (9.68 m-kgs) |
| Operating Temperature | 32°F~120°F (0°~49° C) |
| Dimensions | 4-7/8″x1-1/4″x1-1/16″ (124x32x27.5 mm) |
Troubleshooting
| Electric strike does not activate |
|
| Door does not open when the electric strike is activated. |
|
| Strike makes a buzzing sound. |
|
