Description

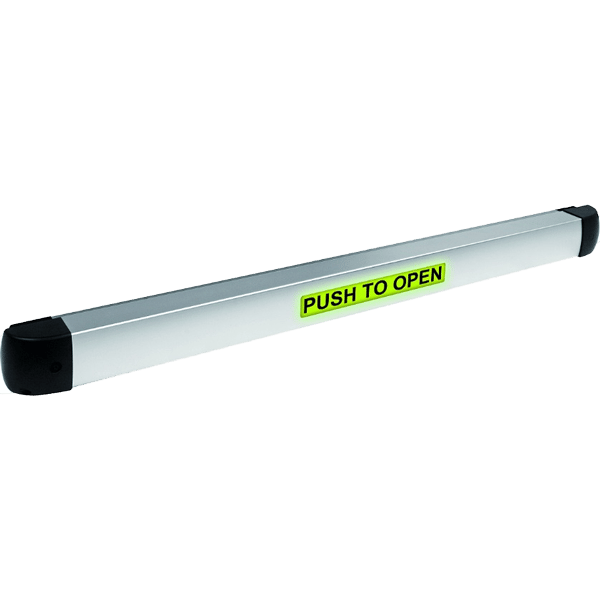

The ENFORCER Illuminated Push-to-Open Bar works with an external electric strike or maglock to provide egress from a protected area. It can work in stand-alone mode or as part of an access control system, but also can be locked open by key. Buzzer, output timing, and LED function and colors are also customizable.
- Provides convenient on-door egress
- LED makes it easy to see the status
- Can be stand-alone or connected to an access control system
- Dogging – standard dogging with hex key
- For 36″ doors – actual length: 337/16” (85cm)
- Can be cut to fit smaller doors, minimum 235/8” (60cm)
- Two built-in non-latching (momentary), dual-contact switches (NO/NC/COM) rated at ≤5A@230VAC, adjustable 0.5~60 sec
- Large LED shows red in standby and green when triggered, but is programmable red/green/blue by an access control panel
- Blinking LED and buzzer programmable for relock warning
- Built-in buzzer indicates unlocked (selectable, up to 92dB)
Specifications
| Operating voltage | 12~24 VDC |
| Power consumption | 180mA@12VDC, 140mA@24VDC (max.) |
| Contact load | ≤5A@230VAC |
| Outputs | NO/NC/COM x2 |
| Trigger duration | 0.5~60 seconds (adjustable) or dogged open |
| Buzzer | Up to 92dB (adjustable) |
| LED Indicators – Colors | Stand-alone red/green, Controlled red/green/blue |
| LED Indicators – Size | 8-1/4″x1″ (210×25 mm) |
| Door width | 36″ (91.4cm), minimum 23-5/8″ (60cm) |
| Door Size | 32°~150° F (0°~70° C) |
| Dimensions | 33-7/16″x2-3/8″x2-3/8″ (850x61x61 mm) |
| Weight | 4-lb 10-oz (2.1kg) |
