Description
The ENFORCER Wave-to-Open Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
- Range up to 2″ (5cm)
- White plastic single-gang plate
- 3A relay, triggers minimum 0.5 sec or as long as hand is near the sensor
- Quick connect screw-less terminal block
- LED illuminated sensor area for easy identification.
- Selectable LED colors (turns from red to green or green to red) to show sensor activated.
Specifications
| Type | Wave-to-Open Sensor Wall Plates |
| Current Draw | 50mA@12VDC |
| Sensing Range | Up to 2″ (5cm) |
| Operating Voltage | 12VDC |
| Reaction time | 10mS |

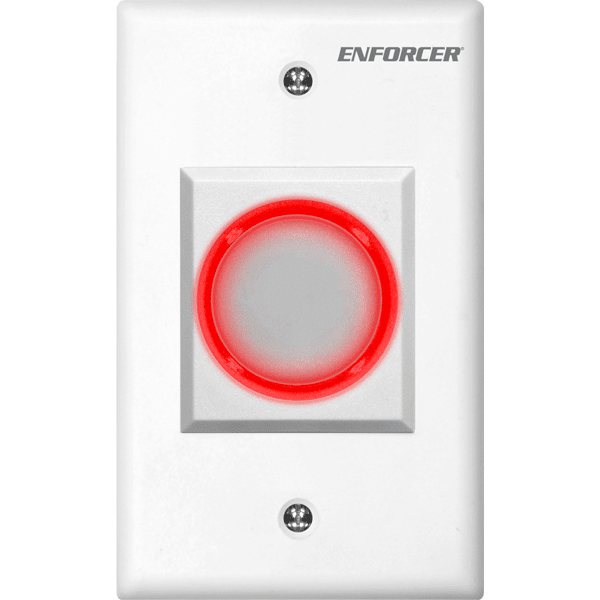

| LEDs – Red | Standby |

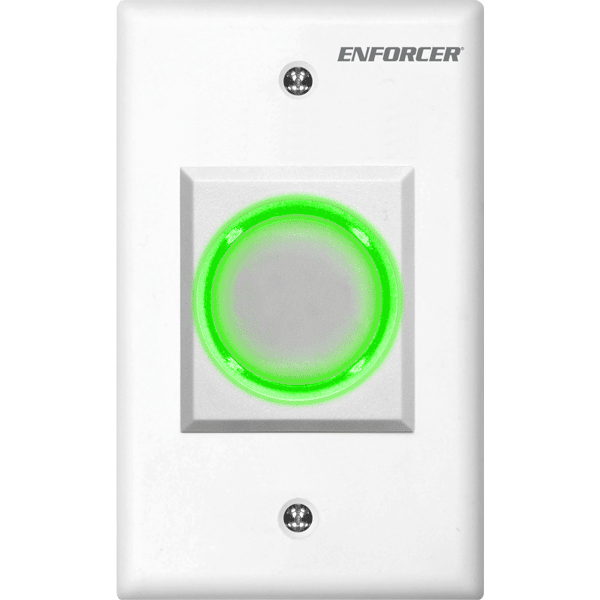

| LEDs – Green | Triggered |
| Relay Type | Form C (NO/NC/COM) 3A@12VDC |
| Output Time | 0.5S or as long as unit is triggered |
| Switching Capacity | 3A@24VDC |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2″ x 2-3/4″ x 1-5/16″ (115 x 70 x 33.5 mm) |
| Weight | 2.5oz (70g) |
