Description

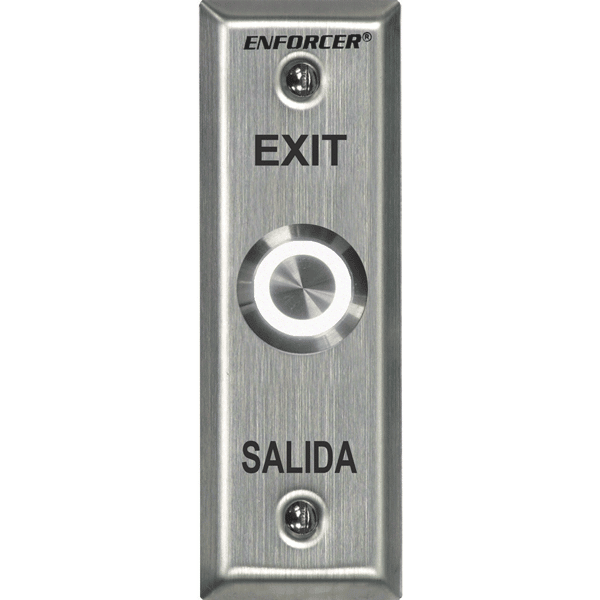

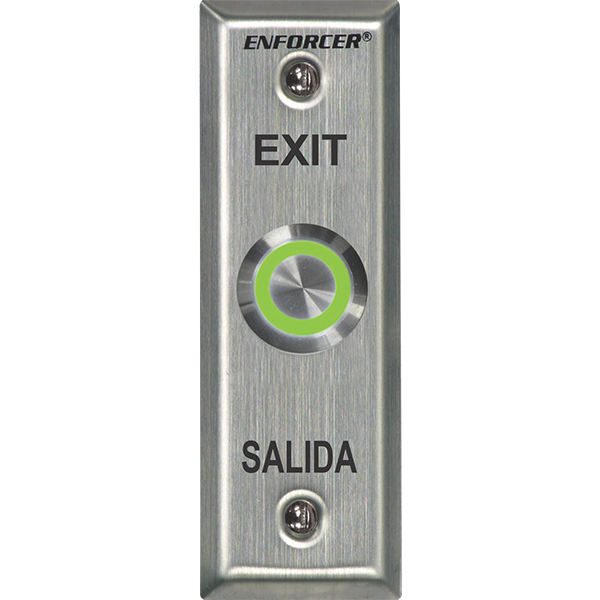

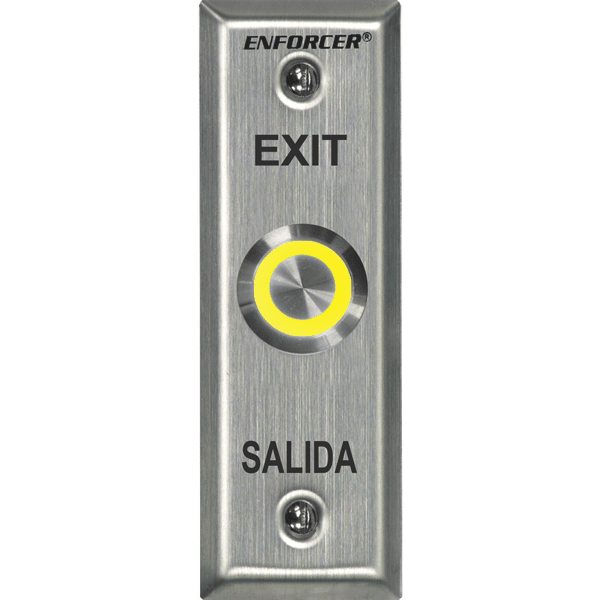

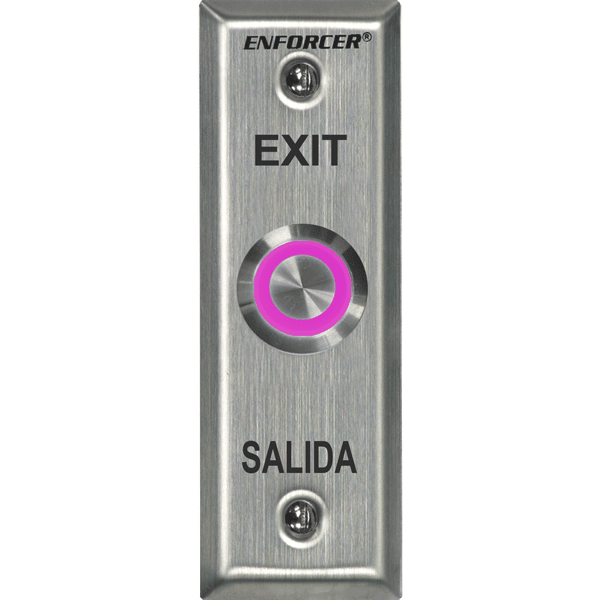

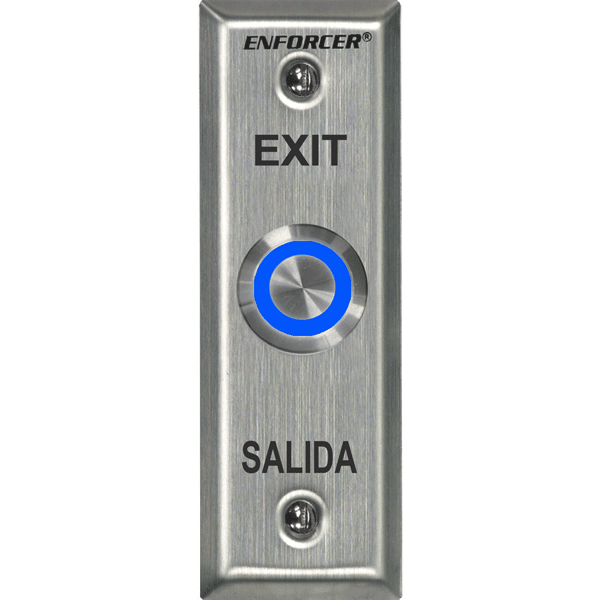

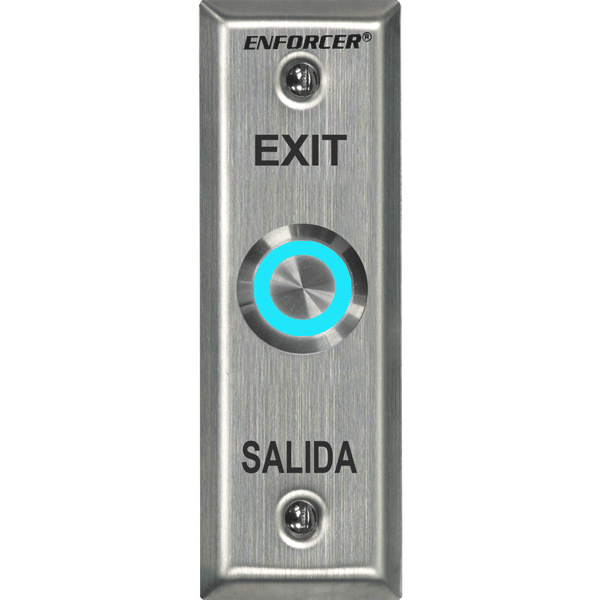

The ENFORCER Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates come with seven field-selectable LED colors, practical for a wide range of indoor/outdoor applications. The ENFORCER Multicolor Illuminated Vandal Resistant Request-To-Exit Plates use a stainless steel vandal resistant button, illuminated by a circular perimeter LED. The LED color is easily selectable during installation to not only red, green, or blue, but also yellow, cyan, magenta, or white.
- Illuminated vandal-resistant ø1″ (ø25mm) pushbutton
- 12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
- Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
- NO/NC (DPST) switch
- Switch contact rating: 20A@24VAC / 1A@24VDC
- Switch is weatherproof (IP65) for outdoor use
- “EXIT” and “SALIDA” silk-screened on plate
Specifications
| Faceplate | Brushed stainless, slimline |
| Button | Vandal resistant with multi-color circular perimeter LED |
| LED colors | Red, green, blue, magenta, yellow, cyan, or white |
| Operating voltage | 12/24 VDC |
| Contact rating | 20A@24VAC / 1A@24VDC |
| Electrical configuration | DPST |
| IP rating | Weatherproof IP65 |
| Operating temperature | -13°~131° F (-25°~55° C) |
| Dimensions | 1-1/2″x4-1/2″x1-3/16″ (38x114x30 mm) |
| Weight | 2-oz (58g) |
