Description

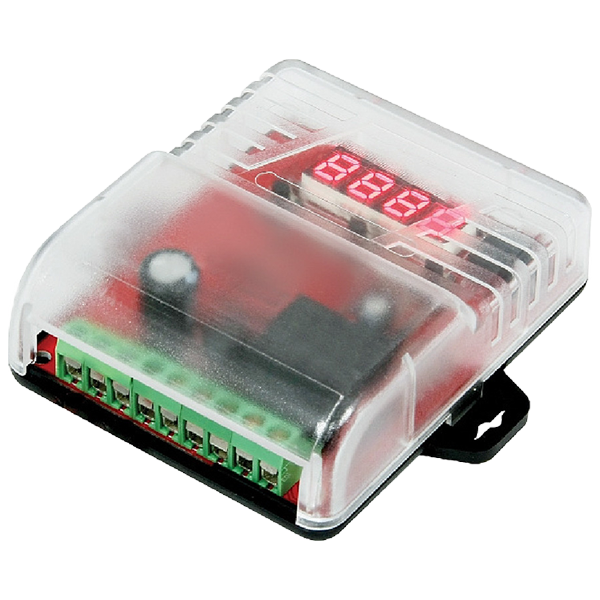

The ENFORCER SA-025MQ Multi-Function Programmable Timer saves time with 7 programmable modes for a variety of common situations. Settings are easily programmed using three pushbuttons and an LED display.
- 12~24VDC (auto-sensing) operation
- Low current draw
- 7 modes easily programmable with pushbuttons and LED display (auto door or gate closure, guard timer, pulse extender / false trigger avoidance, timed relay output, timed pulse relay output, input counter, input timer)
- Timer can be set to trigger a notification (red LED and/or buzzer) and/or a Form C relay output (10A@24VDC)
- Timer can be set from 1sec~11h 59min
- Can be triggered by N.O. pos. (+) or N.C. neg. (–) input, or by powering up the unit
- Relay can be programmed to trigger at the start or end of the timing cycle, or to toggle
- Relay can be programmed to pulse (0.5sec on / 0.5sec off) or steady on (1sec~11h 59min)
- Includes reset input (N.O.–) to manually reset cycle
Specifications
| Operating Temperature | -40°~158° F (-40°~70° C) |
| Operating Voltage | 12~24 VDC (auto sensing) |
| Current Draw – Active | 65~100mA@12/24VDC (relay and buzzer activated) |
| Current Draw – Standby | 20~40mA@12/24VDC |
| Dimensions | 2-11/16″x11/8″x3-1/4″ (68x28x83 mm) |
