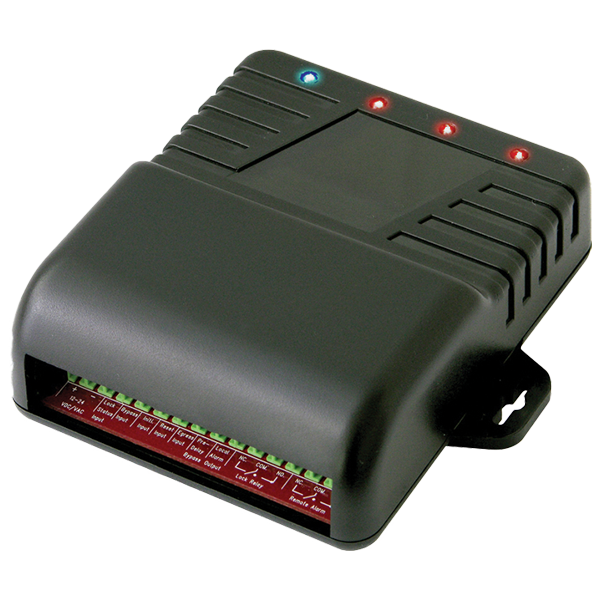

Description
- 12~24 VDC Operation
- 3 Relock modes to meet different installation requirements:
- Standard manual relocking,
- BOCA (Building Officials Code Administrators) relocking,
- Timed relocking (1~60 seconds).
- Programmable nuisance delay timer (0~3 seconds)
- Adjustable pre-delay timer (1~30 seconds)
- Adjustable post-delay timer (1~60 seconds)
- Selectable manual or automatic relocking after power loss
- Lock relay output (Form C, 10A@24VDC)
- Remote alarm relay output (Form C, 10A@24VDC)
- Local alarm output (transistor ground, 500mA@12VDC)
- Door status input
- Status LEDs show relay status
- Bypass input immediately releases locks
- Free egress input allows easy exit during the delay
Specifications
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw – Local Alarm | 35mA@12VDC |
| Current Draw – Pre-Delay | 90mA@12VDC |
| Current Draw – Standby | 120mA@12VDC |
| Current Draw – Timer Module Only | 15mA@12VDC |
| Lock Control Output | 10A@24VDC, Form C, NO/NC/COM |
| Remote Alarm Output | 10A@24VDC, Form C, NO/NC/COM |
| Local Alarm Output | Transistor ground, 500mA@12VDC |
Troubleshooting
| Initiate device (such as a push-to-exit bar) will not release the lock |
|
| Door will not relock |
|
| Door automatically relocks in BOCA mode |
|
