Description

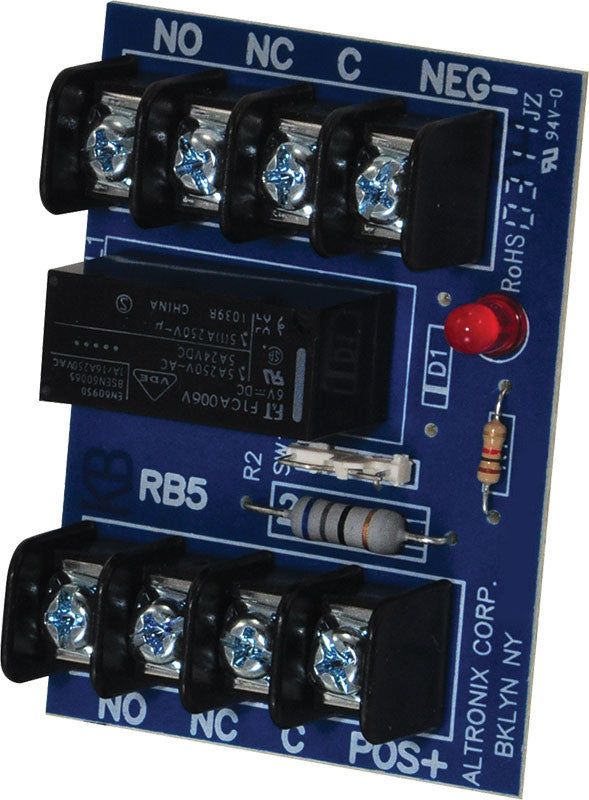

RB5 relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.
Specifications
-
Input Voltage
- 6VDC or 12VDC operation.
- Current draw: 120mA.
-
Contact Rating
- 5A/220VAC or 28VDC DPDT contacts.
-
Temperature
- Operating -25ºC to 55ºC ( -13ºF to 131ºF).
- Storage -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement: 9.6VA.
Dimensions (approximate):
- 2"W x 2.75"L x 1"H (50.08 mm W x 69.85 mm L x 25.4 mm H).
Weights (approximate):
- Product Weight: 0.15 Lbs. (0.06 kg).
- Shipping Weight: 0.25 Lbs. (0.11 kg).
