Description

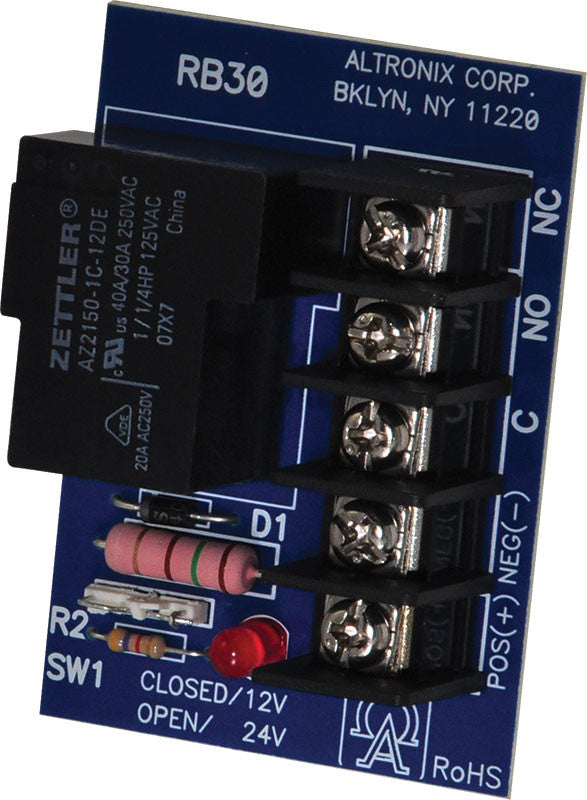

RB30 relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.
Specifications
-
Input Voltage
- 12VDC or 24VDC operation.
- Current draw: 95mA.
-
Contact Rating
- 30A/28VDC, 120VAC or 277VAC SPDT contacts.
-
Temperature
- Operating -25ºC to 55ºC ( -13ºF to 131ºF).
- Storage -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement:
- 12VDC: 11.4VA.
- 24VDC: 22.8VA.
Dimensions (approximate):
- 2"W x 2.75"L x 0.75"H (50.8 mm W x 69.85 mm L x 19.05 mm H).
Weights (approximate):
- Product Weight: 0.1 Lbs. (0.05 kg).
- Shipping Weight: 0.15 Lbs. (0.07 kg).
