Description
System |
PS1A-MINISERVER |
|
CPU |
Intel® Pentium 4405U |
|
Memory |
DDR4, 8GB |
|
Graphics Card |
Integrated Graphics, Intel® HD Graphics 510 |
|
Operation System |
Linux |
Software |
|
|
Software |
Paramont CMS AI TSS |
|
Decoding Capability |
7CH 8MP or 11CH 5MP or 13CH 4MP or 22CH 1080P or 28CH 720P or 36CH D1 (or lower) |
|
Max. Number of Channel Access |
256CH |
|
Max. Number of Device Access |
64 NVRs |
|
Max. User Access |
Max. 5 users preview simultaneously |
|
Max. Outgoing bandwidth |
100Mbps |
|
AI Capability |
Support the integrated management of face detection IPCs, face match servers, face recognition terminals, face match NVRs,ANPR cameras |
|
Support face detection, image search by face image, track playback, allow list and block list alarm as well as stranger alarm |
|
|
Support face attendance, face greeting, people counting, parking lot management, temperature measurement |
|
|
Access |
Support local GUI access; external mouse, keyboard and monitor; multi-monitor display |
|
Protocol |
Private protocol, SDK, ONVIF, RTSP, |
|
Live View |
Support multi-screen display mode; support customized screen display mode, corridor mode, channel group auto-switch, stream self-adaption, manual record and snapshot |
|
Record Playback |
Support search record by time period, time slice, time and tag; support synchronous or asynchronous playback; support record backup |
|
Alarm Linkage |
Support triggering message popup, audio, live view window, recording with tag, decoding on TV Wall |
|
PTZ Control |
zoom in, zoom out, preset, cruise, 3D control |
HDD |
|
|
System HDD |
mSATA SSD 128GB |
|
Data HDD |
NO |
Video &Audio |
|
|
HDMI Output |
1CH HDMI @ 4K |
|
VGA Output |
1 VGA @ 1080P |
|
Audio Output |
1CH Line out |
|
Two-way Audio |
1CH MIC IN |

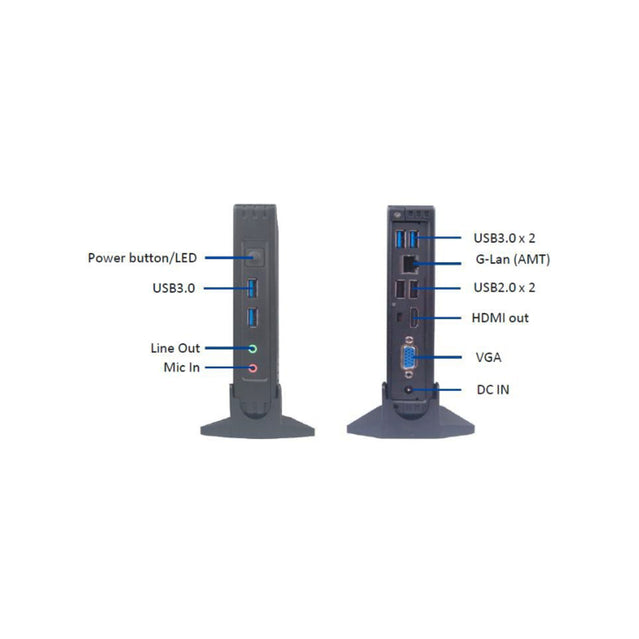

External Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
|
USB Interface |
6 USB ports: USB 3.0x2 (front panel), USB 2.0x2 (rear panel), USB 3.0x2 (rear panel) |
|
Wi-Fi |
1xM.2 2230 (optional) |
Others |
|
|
Power |
DC 12V/3A |
|
Power Consumption |
≤36W |
|
Working Temperature |
23°F -113°F (-5°C - +45°C) |
|
Storing Temperature |
-4°F -158°F (-20°C - +70°C) |
|
Working Humidity |
10%--95% |
|

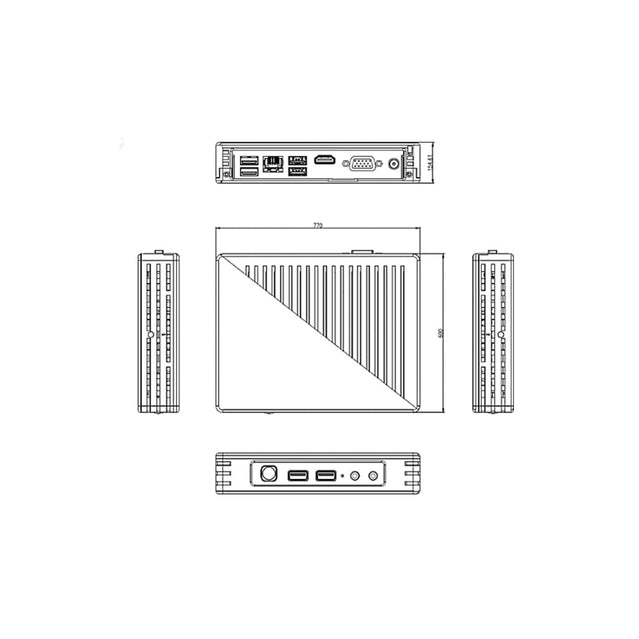

Dimensions (W x H x D) |
6 x 4.7 x 1.1 In (154mm×120mm×30mm) |
|
Weight |
1lb (≤0.47Kg) |
