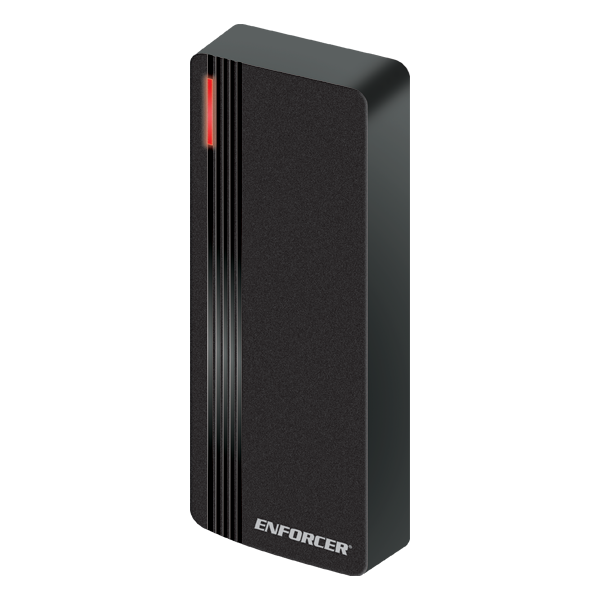

Description
• 9~24 VDC Operation
• Low current draw – 50mA max.
• Built-in buzzer for external alarm input
• Multicolor status LED
• EM 125 kHz
• 10 User proximity cards included
• Weatherproof IP66
• Extreme cold tolerance to -40° F (-40° C)
• Wiegand output reader – EM 26 bits
• Sturdy black ABS plastic housing
Specifications
| Operating Voltage | 9~24 VDC |
| Current Draw – Standby | 20mA@12VDC |
| Current Draw – Active | 50mA@12VDC (max.) |
| Outputs – Wiegand | EM – 26 bits |
| Card type | 125kHz EM |
| Card read range | 0~2″ (0~5 cm) |
| IP Rating | Weatherproof IP66 |
| Enclosure material | Black ABS plastic |
| Operating temperature | -40°~140° F (-40°~60° C) |
| Operating humidity | 10~98% non-condensing |
| Dimensions | 1-7/8″x4-3/4″x13/16″ (48x120x20 mm) |
| Weight | 3.7-oz (105g) |
