Description

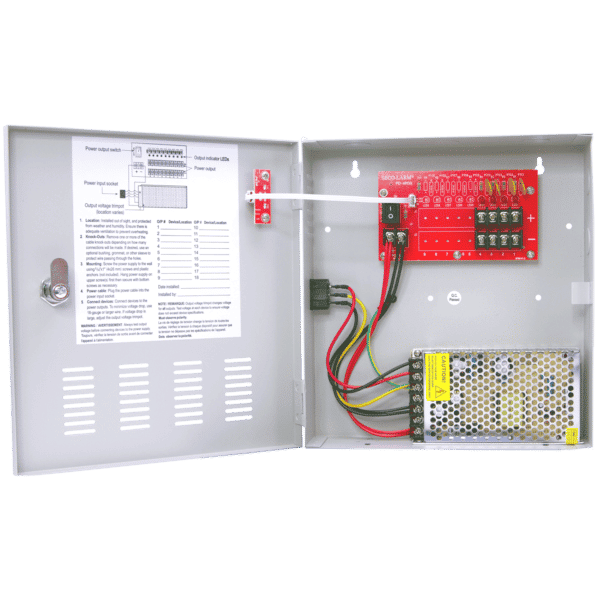

The ENFORCER 12VDC Switching CCTV Power Supply is an efficient solution for powering CCTV installations. Each unit distributes power to multiple CCTV devices and provides short circuit and overheat protection.
- 100~220 VAC Input*
- Adjustable output to reduce voltage drop
- Each output individually protected by a PTC fuse
- PTC fuses rated 1.6A@11.0~13.8 VDC
- Power output ON/OFF switch
- Individual output status LEDs
- Convenient AC input and DC output status LEDs on cover
- Heavy-duty steel case with cover
- Built-in short circuit and overheat protection
- 3.3ft (1m) Power cord included
*UL listed for 90~120 VAC
Specifications
| Outputs | 4 |
| Total supply current | 5A |
| Max. current per output | 1.6A |
| Output fuse | PTC |
| Output voltage | 11.0~13.8 VDC (adjustable by trimpot, ±10% (47~63 Hz) |
| Input voltage | 100~220 VAC ±10% (47~63 Hz) |
| LED indicators | Cover -Green: AC Input, Red: DC Output PDM -Red: DC Output |
| Operating humidity | 90% (non-condensing) |
| Operating temperature | 32°~104° F (0°~40° C) |
| Dimensions | 9-7/6″x10-1/4″x2-3/8″ (240x260x60 mm) |
| Weight | 4-lb 3-oz (1.89kg) |
