Description

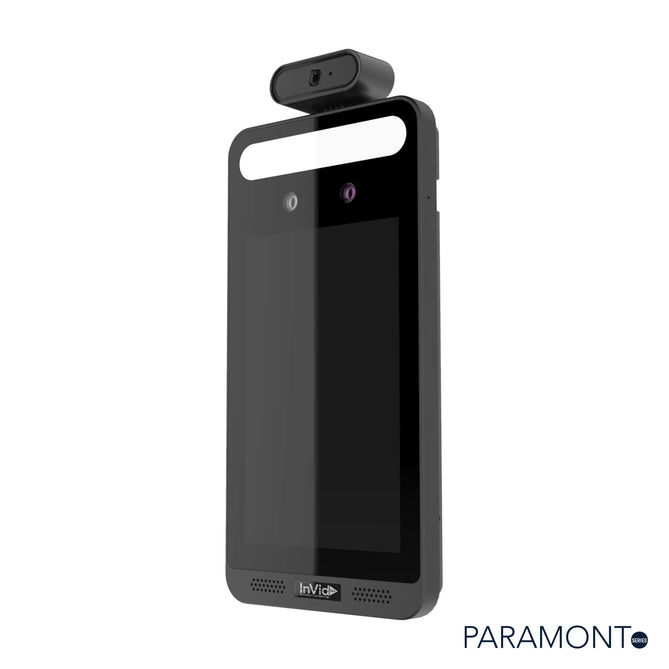

2MP HD Temperature Measurement & Face Recognition Terminal
Features
- 8 inch LCD screen
- High-accuracy IR body temperature measurement
- Non-contact body temperature measurement
- Human-sounding voice prompt
- Real-time face mask detection
- Face liveness detection technology distinguishing real faces from non-real face spoof attacks
- Highly accurate face recognition using deep learning algorithm
- Stand-alone device, ready for networking
-
Supports Native Chrome/EDGE Use
Performance |
PAR-P2TEMPTABLET |
|
OS |
Embedded Linux |
|
Storage |
8Gb DDR3 +16GB EMMC |
Screen |
|
|
Display Screen |
8inch LCD screen; resolution: 1280x800; contrast: 500:1 |
|
Brightness |
500 lux |
|
Control Interface |
I2C |
Temperature Measurement |
|
|
Temperature Measuring Range |
89.6°~109.4° F (32°~43°C) |
|
Accuracy |
± (.54°F) 0.3°C |
|
Measuring Distance |
1Ft (0.3m) |
Face Recognition |
|
|
Sensor |
1/2.7 |
|
Lens |
2MP dual-lens, f=3.97mm @ F1.6 |
|
Lens Mount |
M12 |
|
WDR |
120db |
|
Height Range of Face Recognition |
3.93-7.21Ft (1.2m-2.2m) (the recommended installation height is 4.75ft/1.45m) |
|
Face Recognition Distance |
0.98-6.56Ft (0.3m-2m) |
|
Recognition Mode |
Face: 1：N |
|
Recognition Duration |
≤ 0.5 s per person |
|
Face Capacity |
20,000 |
|
Recognition Accuracy |
99.70% |
Supplementary Light |
|
|
Fill-in Light |
Soft white light, IR light |
|
White Light Distance |
3.28-9.84Ft (1-3m) |
Smart Linkage |
|
|
Screen Wakeup |
Yes |
|
Light Adjustment |
Yes |
|
Snapshot |
Yes |
Audio |
|
|
Two-way Talk |
Yes (noise reduction and echo cancellation) |
|
Audio Input |
1CH built-in MIC |
|
Audio Output |
Built-in speaker |
Interface |
|
|
Network Interface |
10/100Mbps self-adaptive Ethernet port x1 |
|
Alarm Input |
2CH |
|
Alarm Output |
2 CH |
|
Wiegand Interface |
Wiegand input/output（26/34） |
|
RS485 |
RS485x1 (half duplex) |
|
Door Lock Output |
Relay output, NO/NC(optional), delay setting supported |
|
SD Card Interface |
1 micro SD card slot, up to 256G |
|
USB Interface |
USB x1 |
|
Anti-Tamper Interface |
1 button |
|
Exit Button |
1 |
|
Reset Button |
1 |
Others |
|
|
Power |
12VDC@2.5A |
|
Power Management |
Screen sleep, screen protection |
|
Power Consumption |
<12W |
|
Weight |
Approx. 1.2KG |
|
Installation |
Wall Mounting，Pole Mounting, Embedded Installation, Desktop |
|
Protection |
Surge Protection and Voltage Transient Protection |
|
Certifcate |
CE, FCC |
|
Environment Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
|
Working Environment |
60°F~95°F，<95% (non-condensing), without wind, indoor only, 7-10 ft from opening doorways to outside or HVAC vents, no direct sunlight on the thermopile sensor or tablet screen |
|
Language Options |
English, Espanol, Italiana, French, Deutsche, Nederlands, Hrvati, Magyar, Portuguese, Polski, Norsk & more |
|
Dimensions(mm) |
11.88x5.45x1.34 In (301.8x138.6x34.2mm) |
