Description

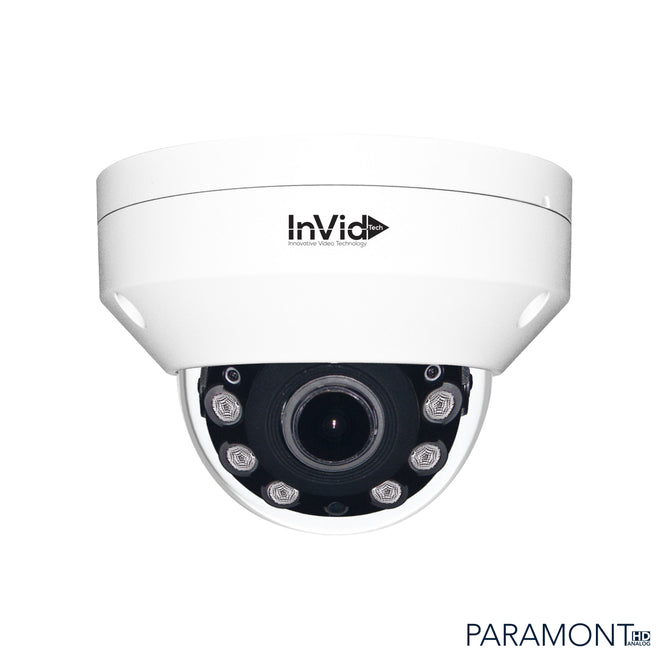

5-2 Megapixel Field Selectable TVI/AHD/CVI/CVBS, Outdoor Vandal Dome, 98’ IR Range, True WDR, 12VDC&24V AC Power Input
Features
- 5-2 Megapixel Field Selectable**,Sony Sensor and Fuhan 4K DSP
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Motorized AF 2.7-13.5mm Lens
- True Day/Night
- True WDR
- 98’ Smart IR Range
- Built-in OSD Board, Built-in Dip Switch
- Internal Built-in Balun and BNC, without Camera Leads
- Up The Cable (UTC) Function
- IP67 Weatherproof
- IK10 Vandal Resistant
- Built-in 12VDC&AC24V Operation
- Built-in 12VDC Output, 100mA Max
- Through InVid Tech DVR: Free App, CMS & MAC Client
Camera |
PAR-ALLDRXIRA27135BD |
|
Filter |
Removable IR Cut Filter |
|
Image Sensor |
1/2.8” 5Mega-pixel Sony CMOS |
|
Pixels |
2592(H)*1944(V) |
|
Video Output |
TVI:5MP 20/12.5 FPS, 4MP/2MP 30/25 FPS AHD:5MP 20/12.5 FPS, 4 MP / 2MP 30/25 FPS CVI:4MP 30/25 FPS, 2 MP 30/25 FPS CVBS” |
|
Video Output By Default |
TVI: 5MP @ 20 FPS AHD:2MP @ 30 FPS CVI: 2MP @ 30 FPS CVBS” |
|
Min Illumination |
0Lux(6PCs led ON) |
|
Vertical Frequency |
NTSC:60Hz PAL:50Hz |
|
IR Range |
98 Feet |
|
S/N Ratio |
≥54DB |
|
Lens |
Motorized AF 2.7-13.5mm IR Lens |
|
Viewing Angle |
Horizontal: 108-27 Degree |
|
White Balance |
ATW (PRO default),Gray World Optional |
|
BackLight Compensation |
OFF (Default) |
|
Day&Night |
Default EXT (B/W, Color, AUTO Optional) |
|
OSD |
Support |
|
AUTO Gain Control |
ON (Default) |
|
3DNR |
AUTO |
|
True WDR |
Default OFF ( ≥120DB) |
|
Auto Exposure Mode |
Default GLOBAL |
|
Defog |
OFF/ON |
General |
|
|
Power Supply |
DC12V ±10%&AC24V±10% |
|
Current Consumption |
DC12V:470mA(Max)/AC24V:220mA(Max) |
|
IP Rating |
IP67 |
|
Dimension |
5.96x4.3” (151 x 109 mm) |
|
Weight |
2.1lbs (950g) |
|
Storage Temperature |
-22 °F +149 °F (-30℃+ 65℃) |
|
Operating Temperature |
-22 °F +122 °F (-30℃+ 50℃) |
