Description

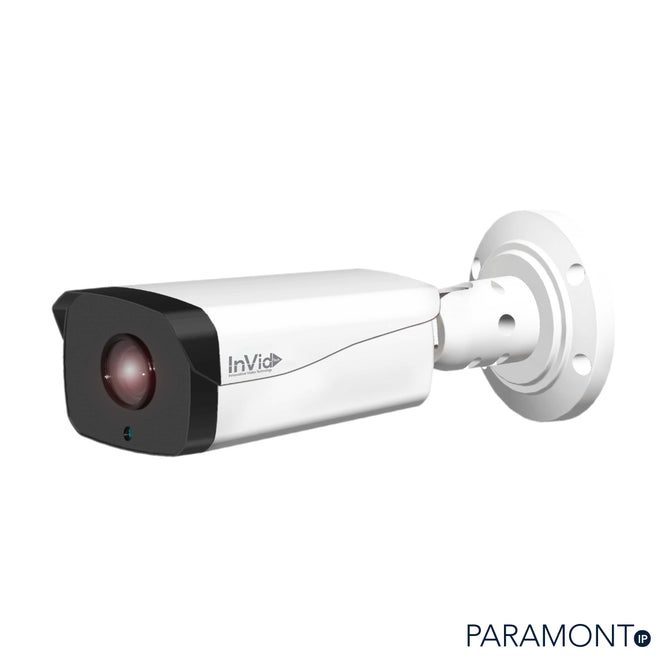

5-2 Megapixel Field Selectable TVI/AHD/CVI/CVBS, Outdoor Long Range Bullet, Motorized AF 2.7-13.5mm Lens, 197’ IR Range, True WDR, Dual Voltage
Features- 5-2 Megapixel Field Selectable**, Sony Sensor and Fuhan 4K DSP
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Motorized AF 2.7-13.5mm Lens
- True Day/Night
- True WDR
- 197’ Smart IR Range
- Built-in OSD Board, Built-in Dip Switch, Built-in Optional Video Output
- Up The Cable (UTC) Function
- IP67 Weatherproof
- Dual Voltage
- Through InVid Tech DVR: Free App, CMS & MAC Client
*Scale down to other resolutions via camera dip switches & OSD
Camera |
|
|
Filter |
Removable IR Cut Filter |
|
Image Sensor |
1/2.8” 5Mega-pixel Sony CMOS |
|
Pixels |
2592(H)*1944(V) |
|
Video Output |
TVI:5MP 20/12.5 FPS, 4MP/2MP 30/25 FPS AHD:5MP 20/12.5 FPS, 4 MP / 2MP 30/25 FPS CVI:4MP 30/25 FPS, 2 MP 30/25 FPS CVBS” |
|
Video Output By Default |
TVI: 5MP @ 20 FPS AHD:2MP @ 30 FPS CVI: 2MP @ 30 FPS CVBS” |
|
Min Illumination |
0Lux(12PCs led ON) |
|
Vertical Frequency |
NTSC:60Hz PAL:50Hz |
|
IR Range |
197 Feet |
|
S/N Ratio |
≥54DB |
|
Lens |
Motorized AF 2.7-13.5mm IR Lens |
|
Viewing Angle |
Horizontal: 108-27 Degree |
|
White Balance |
ATW (PRO default),Gray World Optional |
|
BackLight Compensation |
OFF (Default) |
|
Day&Night |
Default EXT (B/W, Color, AUTO Optional) |
|
OSD |
Support |
|
AUTO Gain Control |
ON (Default) |
|
3DNR |
AUTO |
|
True WDR |
Default OFF ( ≥120DB) |
|
Auto Exposure Mode |
Default GLOBAL |
|
Defog |
OFF/ON |
General |
|
|
Power Supply |
Dual Voltage |
|
Power Consumption |
DC12V: 870mA (MAX)/AC24V:400Ma(MAX) |
|
IP Rating |
IP67 |
|
Dimension |
11.0”×4.4×3.2” (280×111×81mm) |
|
Weight |
2.4lbs (1100g) |
|
Storage Temperature |
-22 °F +149 °F (-30℃+65℃) |
|
Operating Temperature |
-22 °F+122 °F (-30℃+50℃) |
