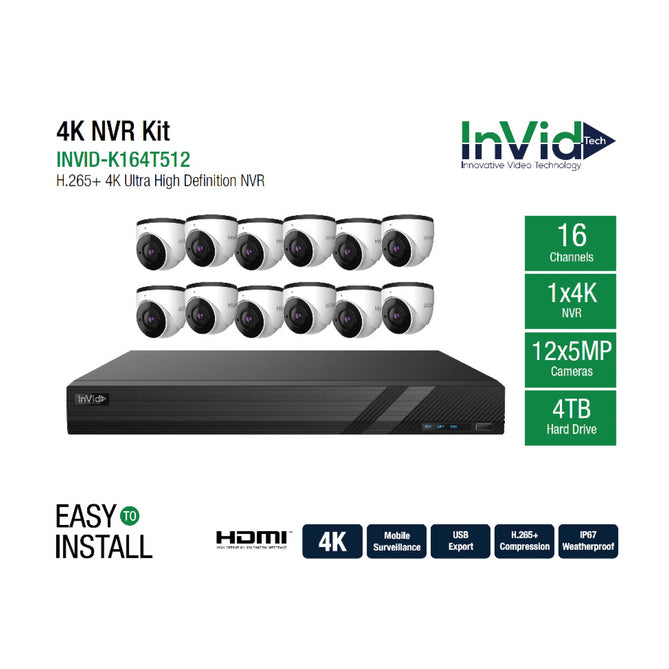

Invid INVID-K164T512 16 Channel NVR with 4 TB +(12) 5-Megapixel Cameras

Image Sensor

1 / 2.7 "CMOS

Image Size

2592×1944

Electronic Shutter

1 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.0236 lux @F2.0, AGC ON; 0 lux with IR

Lens

2.8 mm @F2.0, horizontal FoV: 93.4°; Vertical FoV: 77°; Diagonal FoV: 106°

Lens Mount

M12

Wide Dynamic Range

Digital WDR

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°


Video Compression

H.265 / H.264

H.265 Compression Standard

Main Profile@Leve4.1 High Tier

Resolution

5MP ( 2592 × 1944 ), 4MP ( 2560 × 1440 ), 1080P ( 1920 × 1080 ),

720P ( 1280 × 720 ), D1, CIF, 480 × 240

Main Stream

60Hz : 5MP(1~20fps)/ 4MP(1~30fps)/ 1080P(1~30fps)/ 720P(1~30fps)

50Hz : 5MP(1~20fps)/4MP (1~25fps)/1080P (1~25fps)/ 720P (1~25fps)

Sub Stream

60Hz : 720P(1~15fps)/D1(1~30fps)/CIF (1~30fps);

50Hz:720P(1~12fps)/D1(1~25fps)/CIF    (1~25fps)

Third Stream

60Hz : D1/CIF/480×240 (1~30fps);   50Hz: D1/CIF/480×240   (1~25fps)

Bit Rate

64 Kbps ~ 5 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness,

NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Interfaces

Network

RJ45

Video Output

No

Audio

1CH built-in MIC

Storage

Built-in micro SD card slot, up to 128GB

Reset

Yes

Functions

Remote Monitoring

Web browsing,CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users;

Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP,

802.1x, UPnP, HTTP, HTTPs, QoS

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion detection

Intelligent Analytics

Object removal detection (object left/missing), scene change detection,

video blur detection, intrusion detection and line crossing detection

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock

PoE

Yes

IR Distance

65’ (20~ 30 m)

Ingress Protection

IP67

Others

Power Supply

DC12V/PoE

Power Consumption

< 5W

Operating Environment

-22°F~140°F (- 30 °C ~ 60 °C)

Humidity: less than 95 % (non-condensing)

Dimensions ( mm )

Φ 3.72” x 3.26” (94.6 × 82.8mm)

Weight ( net )

Approx. 0.99lb (0.45KG)

Installation

Ceiling mounting; Wall mounting

Certificate

CE, FCC

Environmental Protection

Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)

OS

Embedded Linux

Video

Network Input

16 CH IPC input

Network Input Resolution

8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF

Output

HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768

VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768

Compression

H.265S / H.265+ /H.265 /H.264

Audio

Network Input

16 CH IPC audio input

2-way Audio

RCA × 1

Local Output

RCA × 1

Compression

G.711(U/A)

Record

Resolution

8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF

Frame Rate

N:30fps; P:25fps

Playback

Simultaneous Playback

Max. 16 CH

Search

Time slice / time / event / tag search/ smart search

Smart Search

Highlighted color to display the camera record in a certain
period of time, different colors refers to different record events

Function

Play, pause, FF, FB, digital zoom, etc.

Decoding Capability

Live View / Playback

1CH 8MP; 4CH 1080P

Alarm

Mode

Manual, sensor, motion, exception, smart events

Input

Supports IPC alarm input

Output

Supports IPC alarm output

Triggering

Record, snap, preset, e-mail, etc.

Other Functions

Plate Recognition

Yes

Fisheye

No

Video Structure Analysis

Human/Vehicle Classification

Yes

Network

Interface

RJ 45 1000Mbps × 1

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs,
802.1x, RTSP, SNMP, ONVIF, etc.

Incoming/Outgoing Bandwidth

96Mbps/96Mbps

Client Connection

Max.10 users access

Mobile Device

OS

iOS, Andriod

Storage

HDD Interface

SATA3.0 × 2, max 14TB per HDD

Backup

Local Backup

USB, USB to HDD (1TB Max)

Network Backup

Yes

Port

USB

USB 2.0 × 2

Remote Controller

Included

PoE

PoE Ports

RJ 45 100 Mbps × 16

Standards

IEEE802.3AF/AT

Output Power

≤ 150W

Others

Power Supply

DC 48V/3.75A

Consumption

≤ 10W ( without HDD )

Dimensions ( W × D × H )

 14.9 x 10.5 x 1.7 In (380 × 268 × 45 mm )

Working Environment

14°F ~122°F (-10 ~ 50 ℃)10% ~ 90% humidity

Certificate

CE, FCC

Environmental Protection

Complies with Directive EU RoHS, REACH and WEEE
