Description

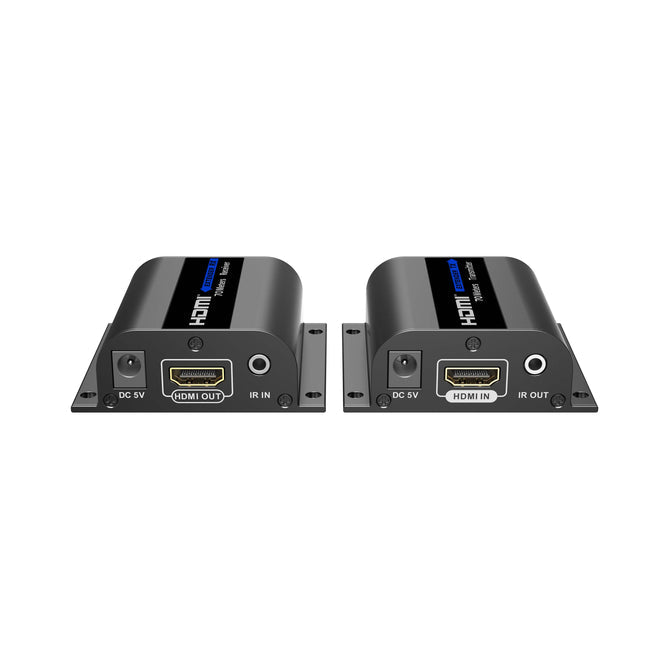

164 Feet (50m) 1080P@60Hz HDMI Extender Over Single Cat6 With IR (Built-in EDID management)
Technical |
Transmitter-TX |
Receiver-RX |
|
|
HDMI compliance |
1.3 |
|
|
|
HDCP compliance |
1.4 |
|
|
|
Video bandwidth |
225MHz(10.2Gbps) |
|
|
|
Video support |
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz |
|
|
|
Audio support |
PCM, LPCM, DTS-HD, DTS |
|
|
|
InputTMDS signal |
1.2Vp-p |
|
|
|
EDID through |
Support |
|
|
|
IR passback |
Support |
|
|
|
IR frequance Range(KHz) |
20-60KHz |
|
|
|
Input |
1×HDMI |
1×RJ45, 1×3.5mm(IR) |
|
|
Output |
1×RJ45, 1×3.5mm(IR) |
1×HDMI |
|
|
HDMI conector |
Type A, Female, 19-pin |
|
|
|
RJ-45 connector |
RJ-45 |
|
|
|
HDMI Distance |
1080p: 25 Foot Maximum Distance |
|
|
Mechanical |
|
|
|
|
Housing |
Metal enclosure |
|
|
|
Dimensions (L×W×H) |
2.8 x 2.6 x .98 in (71.6 × 66.6 × 24.8mm) |
|
|
|
Net weight |
.19 lb (85g) |
|
|
|
Fixedness |
Wall-mounting case with screws |
|
|
|
Power supply |
5V/500mA |
|
|
|
Consumption |
<1.5W |
|
|
|
Operation temperaure |
-4°F ~140°F(-20°C ~60°C) |
|
|
|
Storage temperature |
-4°F ~140°F (-30°C ~70°C) |
|
|
|
Relative humidity |
0~90% (no condensation) |
