Description

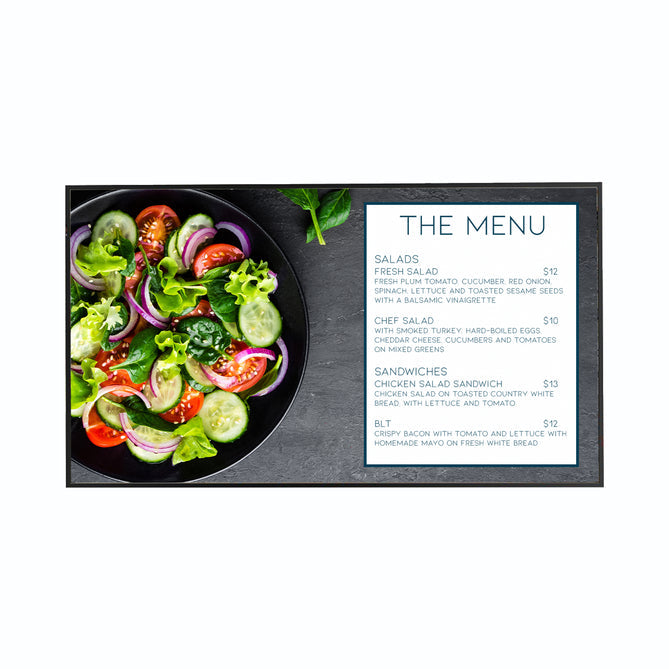

43” Ultra High Definition 4K Monitor, 3840 x 2160 Image, HDMI, VGA, DVI,
Use as a Standard Monitor or Utilize the Digital Signage Software & Load Content
The IMHD-Series 4K digital signage displays with embedded Android OS, free content management system (CMS) and versatile media player are designed to provide a smart and enhanced digital signage solution. Featuring a built-in scheduler and network connections, users can remotely manage and schedule digital contents, and deliver the right message to the right audience without any hassle. Digital media such as photos, music and videos can be stored in the internal 8GB memory, USB drives or Micro SD cards. The IMHD-Series displays are ideally designed for retail shops, restaurants, hotels and other public spaces.
Features
- 4K UHD 3840 x 2160 resolution
- Anti-Burn-inTM technology prevents image ghosting
- Versatile connectivity:HDMI, DVI*, VGA
- Media Playback: play photos, PDFs, videos and music from a USB drive, micro SD or the internal storage
- An integrated scheduler allows content programming based on time and day
- Free and easy-to-use content management system (CMS)
- Android OS 5.0.1
- RJ45, RS232, IR device control support
- Built-in speakers
- VESA mount compatibility for flexible installation
Panel |
IMHD-43A |
|
Panel Type |
LED Backlit TFT LCD (VA Technology) |
|
Panel Size |
42.5" |
|
Max. Resolution |
UHD 3840 x 2160 |
|
Pixel Pitch |
0.245mm |
|
Brightness |
350 cd/m2 |
|
Contrast Ratio |
5000:1 |
|
Viewing Angle (H/V) |
176°/176° |
|
Disply Colour |
1.07B |
|
Response Time |
5ms |
Frequency (H/V) |
|
|
H.Freq |
31 kHz-92 kHz |
|
V.Freq |
48 Hz-85 Hz |
Input |
|
|
VGA |
15-Pin D-Sub x 1 |
|
DVI |
24-Pin DVI-D x 1 |
|
HDMI |
2.0 x 2 |
External Control |
|
|
IR in/out |
3.5 mm Phone Jack |
|
RS232 in/out |
2.5 mm Phone Jack |
|
LAN (RJ45) |
Yes |
Embedded Player |
|
|
OS |
Android 5.0.1 |
|
CPU |
1 Ghz Quad Core Full HD |
|
Memory |
2 GB DDR3 |
|
Storage |
8 GB eMMC |
Other |
|
|
USB |
2.0 x 1 (Service Port / Media Playback) 3.0 x 1 (Media Playback) |
Connectivity |
|
|
OPS Slot |
Yes |
|
Micro SD Card Slot |
Yes |
Audio |
|
|
Audio In |
Stereo Audio Jack (3.5 mm) |
|
Audio Out |
Stereo Audio Jack (RCA) |
|
Internal Speaker |
10W x 2 |
Power |
|
|
Power Supply |
Internal |
|
Power Requirements |
AC 100-240V, 50/60 Hz |
|
On Mode |
110W (On) |
|
Stand-by Mode |
< 0.5W |
|
Off Mode |
< 0.5W |
Operating conditions |
|
|
Temperature |
41°F ~ 104°F (5°C ~ 40°C) |
|
Humidity |
20%-80% (non-condensing) |
Storage Conditions |
|
|
Temperature |
-4°F ~ 140°F (-20°C~60°C) |
|
Humidity |
10%-90% (non-condensing) |
Mounting |
|
|
VESA FPMPMI |
Yes (400 x 400 mm & 200 x 200 mm) 7” 75x75 22”/24” 100x100 27” 75x75 and 100x100 |
Dimensions |
|
|
w/o base (W x H x D) |
38.1” x 22.0” x 2.4” (968.2 x 559.4 x 59.9 mm) |
|
Packaging (W x H x D) |
42.1” x 27.4” x 6.3” (1070.0 x 696.0 x 159.0 mm) |
Weight |
|
|
w/o base |
19.2 lb (8.7 kg) |
|
Packaging |
26.9 lb (12.2 kg) |
Regulation Approval |
|
|
Certifications & Compliance |
CB, CE, FCC, RoHS, WEEE, REACH |
Accessories |
|
|
Supplied |
Power Cord, HDMI Cable, Remote Control, Batteries, Quick Start Guide |
