Description

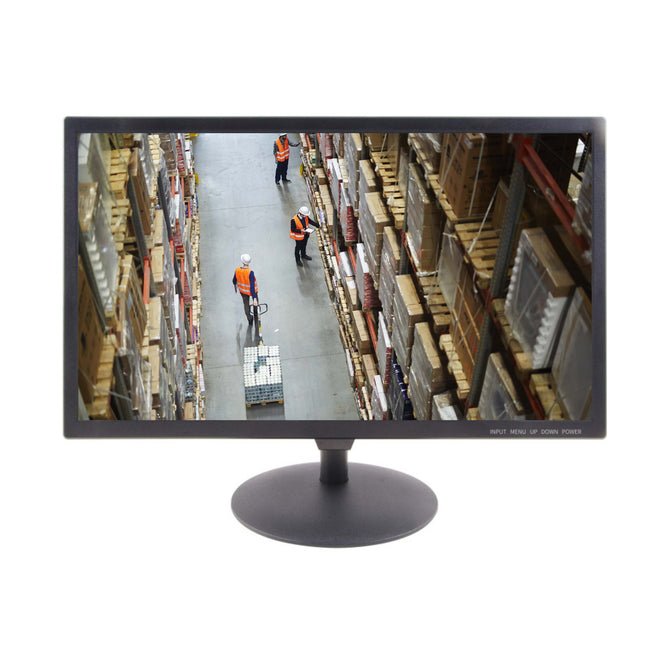

22” 1920 x 1080 LED Monitor, HDMI 2.0, VGA, RJ45 PoE Input, Looping BNC Inputs & Outputs, PoE+ Powered Monitor
Features
- 1920 x1080 Resolution
- LCD Panel
- Inputs: HDMI 2.0, VGA, RJ45 PoE, BNC (2)
- Outputs: BNC
- Powered by DC12V or PoE+. A PoE+ switch or injector is required. Minimum of 30-watts required
- Additional LAN Port that does not have PoE. Works similarly to a single port unmanaged switch. Extend your network and connect a networkable device.
- 16.7 Million Color Capacity
- Built-in speaker
-
VESA Mount 100x100
Display Characteristics |
|
|
Mode Name |
IMHD-22HVBPOE |
|
Screen Size |
22'’ |
|
Active Display Area (W x H) |
18.8 in x 10.6 in (476.64mm x 268.11mm) |
|
Display Mode |
16:9 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 × 1080 |
|
Display Color |
16.7M |
|
Pixel Pitch (H x V) |
0.248 × 0.248 mm |
|
Brightness (nits) |
250cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (H/V) |
178 /178 |
|
Response Time |
5ms |
|
Backlight |
LED |
Input & Output |
|
|
HDMI 2.0 |
1 |
|
VGA |
1 |
|
RJ 45 PoE input |
1 |
|
BNC input/output (CVBS,960H Only) |
2/1 (Max Daisy Chain: 3 Monitors, Max Distance: 200ft) |
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language |
|
3D comb filter |
Yes |
|
Video Noise Reduction |
Yes |
Power & Mount Way |
|
|
Power |
DC12V,3A (Included) ,or POE+ Input AT Standard |
|
Working Temperature |
-22°F~ 185°F (-30°C~85°C) |
|
Power Consumption |
<25W |
|
Menu |
Chinese/English(other languages supported) |
|
Mounting/Weight |
Stand mount, VESA mount/3.5kg 22”/24” 100x100 |
|
MTBF |
50000Hours |
|

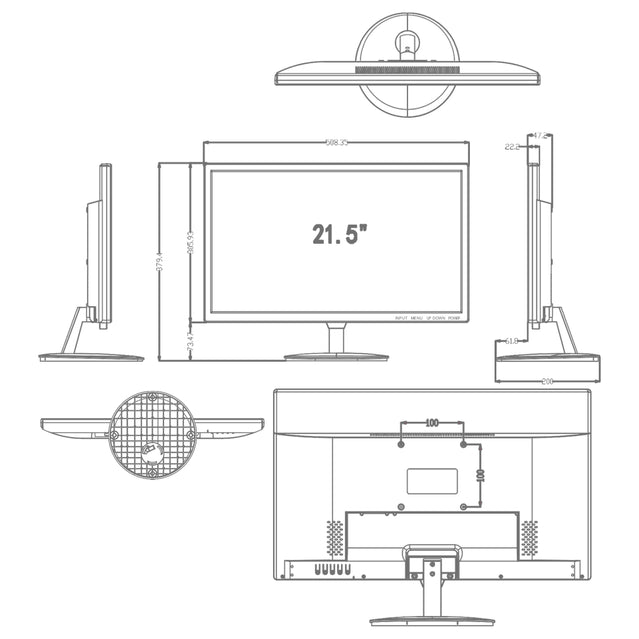

Dimension size |
20 x 12 x 1.9 in (508*305*47mm) |
