Description

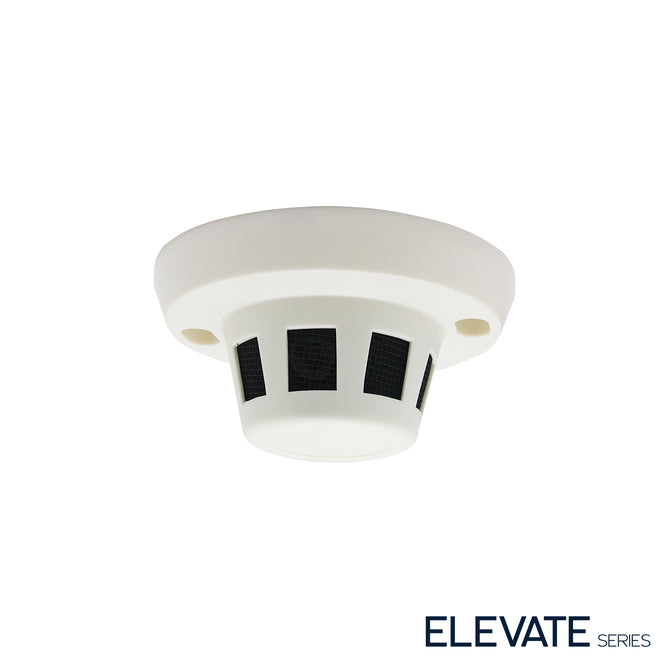

5 Megapixel TVI/AHD/CVI/CVBS Indoor Covert Smoke Detector Housing, D-WDR, DC12V
Features
- 5 Megapixel Resolution (2592 x 1944)
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Fixed Lens
- Day/Night
- D-WDR
- Up The Cable (UTC) Function
- Indoor Only
- OSD Remote (Attached to cable)
- 12VDC Only Operation
- Through InVid Tech DVR: Free App, CMS & MAC Client
|
Model |
ELEV-ALLSMOKE5 |
|
Image Sensor |
1/2.8" Sony CMOS Sensor |
|
Signal System |
NTSC/PAL |
|
Effective Pixels |
2592(H) x 1944(V) |
|
Min. IIIumination |
0.01Lux |
|
Video Frame Rate |
PAL/NTSC:5MP@20fps |
|
Video Output |
AHD / TVI / CVI / CVBS (960H) |
|
Video Output Default |
TVI |
|
Camera Features |
|
|
S/N Ratio |
>55dB |
|
Noise Reduction |
2D & 3D DNR |
|
Day&Night |
Color / B&W/ AUTO / EXT |
|
White Balance |
Auto / Manual |
|
OSD |
English / Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Dutch / Turkish / Korean / Japanese / Hebrew / Arabic |
|
AGC |
Auto |
|
Mirror Image |
Yes |
|
Auto Iris |
No |
|
Sharpness |
Yes |
|
Defogging |
No |
|
BLC |
Yes |
|
D-WDR |
Yes |
|
Smart IR |
No |
|
Lens |
|
|
Lens |
2.8mm Board Lens |
|
View Angle |
Horizontal: 94 Degree |
|
Lens Type |
Fixed Iris |
|
Mount Type |
M12 |
|
General |
|
|
Housing Material |
Plastic |
|
Power Supply |
DC12V(+/-10%) |
|
Power Consumption |
＜< 5W |
|
Working Temperature / Humidity |
-40°F ~ 140°F (-40~+60℃) |
|
Dimensions(W×D×H) |
120 x 58(H)mm |
|
Weight |
0.51 lbs(230g) |
