Description

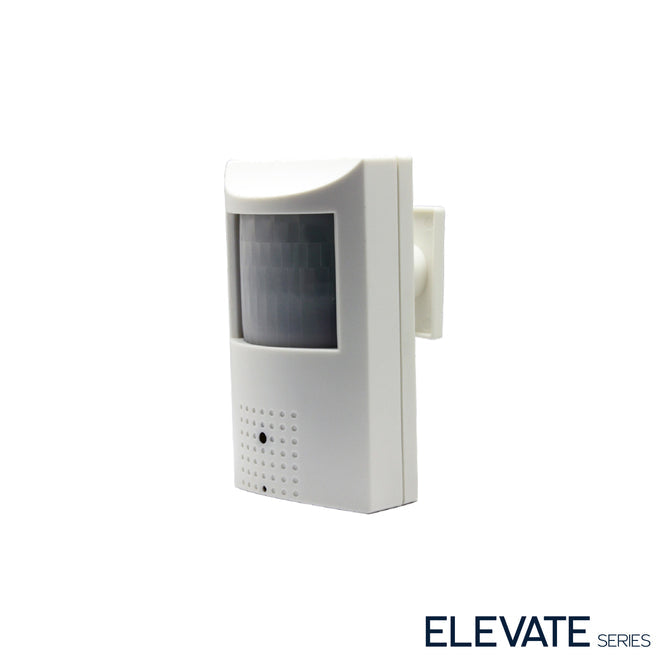

5 Megapixel TVI/AHD/CVI/CVBS, Indoor Covert, Functioning PIR, D-WDR, 12VDC
Features
- 5 Megapixel Resolution (2592 x 1944)
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Fixed Lens
- Day/Night
- D-WDR
- Built-In Mic
- Up The Cable (UTC) Function
- Withstand up to -40° Operation
- OSD Remote (Attached to cable)
- Indoor Only/Functioning PIR
- 12VDC Only Operation
- Through InVid Tech DVR: Free App, CMS & MAC Client
|
Camera |
ELEV-ALLPIR5 |
|
Image Sensor |
1/2.8" Sony CMOS Sensor |
|
Signal System |
NTSC/PAL |
|
Effective Pixels |
2592(H) x 1944(V) |
|
Min. IIIumination |
0.01Lux |
|
Video Frame Rate |
5MP@20fps |
|
Video Output |
AHD / TVI / CVI / CVBS (960H) |
|
Video Output Default |
TVI |
|
Compression Standard |
|
|
Audio Compression |
G.711A |
|
Audio Bit rate |
64Kbps |
|
Camera Features |
|
|
S/N Ratio |
>55dB |
|
Noise Reduction |
2D & 3D DNR |
|
Day&Night |
Color / B&W/ AUTO / EXT |
|
White Balance |
Auto / Manual |
|
OSD |
English / Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Dutch / Turkish / Korean / Japanese / Hebrew / Arabic |
|
AGC |
Auto |
|
Mirror Image |
Yes |
|
Sharpness |
Yes |
|
BLC |
Yes |
|
D-WDR |
Yes |
|
Lens |
|
|
Lens |
3.7mm pinhole |
|
View Angle |
Horizontal: 66.6 Degree |
|
Lens Type |
Fixed Iris |
|
Mount Type |
M12 |
|
Interface |
|
|
Audio I/O |
0/1 |
|
Alarm I/O |
0/1 |
|
Built-In Mic |
Support |
|
General |
|
|
Housing Material |
Plastic |
|
Power Supply |
DC12V(+/-10%) |
|
Power Consumption |
＜5W |
|
Working Temperature / Humidity |
-40° ~ 140°F (-40 ~ +60℃ ) |
|
Dimensions (W×D×H) |
2.75 x 3.03 x 4.72” (70 x 77 x 120mm) |
|
Weight |
0.617lb (280g) |
