Description

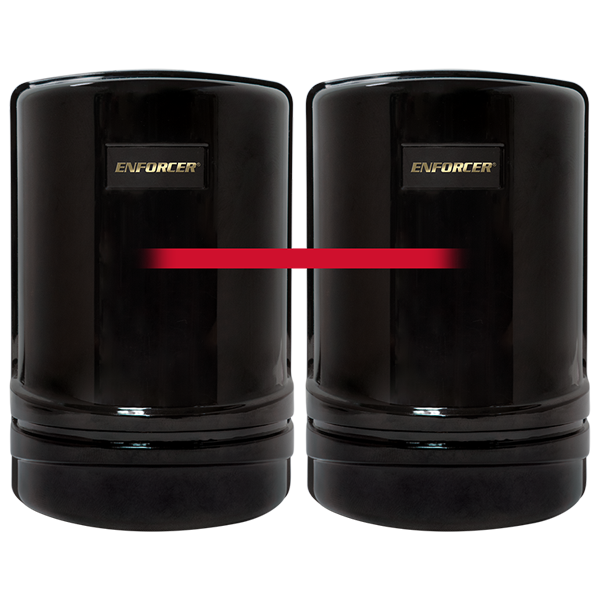

The E-964-S50TB is a simple, easy-to-use, and easy-to-install single-beam infrared motion sensor with 4 selectable frequencies. The device easily installs almost anywhere to provide an invisible beam that, when broken, sends a signal to activate a light, beeper, or other devices. This makes the device perfect for use as part of an access control system, a door or window monitor, a retail store customer alert, or many other places where the user needs to know that someone has entered a specific room or building or other protected areas. The E-964-S50TB is weather-proof, and comes with a built-in AGC control circuit that helps to filter out possible disturbance caused by local lighting conditions.
- 4 selectable frequencies to reduce interference
- Up to 50ft (15m) sensing distance
- Small size for a less conspicuous installation
- Simple to install
- Built-in AGC control to filter out lighting disturbances
- Signal strength indicator for easier alignment
- LED indicators for power, signal strength, and trigger
- Weatherproof for outdoor as well as indoor use (IP65)
- Mounting hardware included
Specifications
| Type | IR Multi-Frequency Single Beam Sensor |
| Current Draw | Transmitter- 15mA@12VDC, Receiver- 30mA@12VDC |
| Number of Beam Frequencies | 4 |
| Number of Beams | 1 |
| Sensing Range | Up to 50ft (15m) |
| Infrared LED Wavelength | 940nm |
| Operating Voltage | 10~24VDC |
| Interupt Speed | 50ms |
| LED Beam Spread Angle | Approximately ±10° |
| LEDs – Red | Indicates transmitter and receiver are not aligned or beam is broken (Alarm) |
| LEDs – Yellow | Dims/off when receiver’s signal is weak / off when beam is broken |
| LEDs – Green | Indicates connected to power |
| Output | NO/NC relay (set by jumper, default is N.C.) 0.5A@30VAC/VDC |
| Operating Humidity | 0~95% |
| Operating Temperature | -13°~131°F (-25°~55°C) |
| Dimensions | 3-11/16″ x 2-3/8″ x 1-13/16″ (94 x 60 x 46 mm) |
| Weight | 2.6-oz (74g) |
| Enclosure | Weatherproof IP65 |
Troubleshooting
| Sensor does not detect the object |
|
| Green power LED does not turn on |
|
| Yellow LED or Red LED does not turn off |
|
| Red LED lights when object is detected, but the output device is not activated |
|
