Description

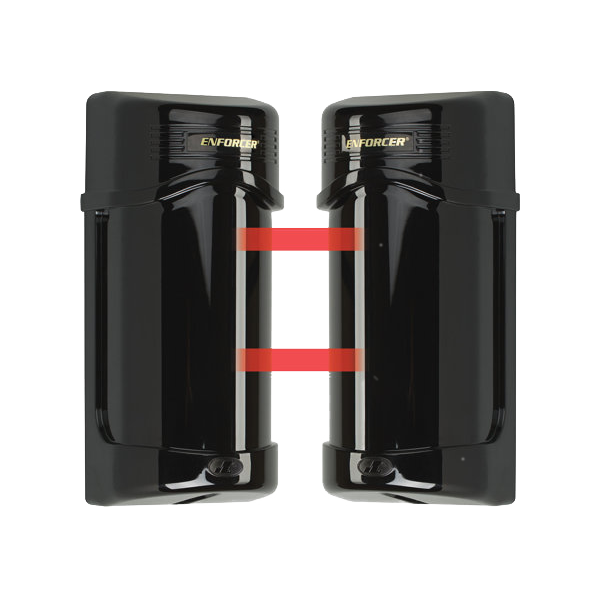

Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors
- Built-in laser beam alignment system speeds accurate, reliable positioning
- Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
- Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
- Weatherproof (IP55), sunlight-filtering case for indoor & outdoor use
- Anti-frost system so that beam functions even in extreme conditions
- Automatic input power filtering with special noise rejection circuitry
- NC/NO alarm output
- N.C. tamper circuit included
- Non-polarized power inputs
- Quick, easy installation with built-in laser beam alignment system
- Response time adjustable for nearly all situations
- Response time is set at the factory to the shortest time (50ms)
Specifications
| Type | Twin Photobeam Detectors with Laser Beam Alignment |
| Current Draw | 64mA max. |
| Sensing Range | Outdoor- 90′ (30m), Indoor- 190′ (60m) |
| Operating Voltage | 10~30VAC/VDC (Non-polarized) |
| IP Rating | Weatherproof IP55 |
| Interupt Speed | 50msec~700msec (variable) |
| LEDs – Red | ON indicates transmitter and receiver not aligned or beam is broken |
| LEDs – Yellow | ON indicates weak receiver signal or beam is broken |
| LEDs – Green | ON indicates unit connected to power |
| Detection System | Simultaneous break of 2 beams |
| Alarm Output | NO/NC relay, 1A @ 120VAC, min. 1 sec. |
| Tamper Output | NC. switch, 1A@120VAC |
| Case material | PC Resin |
| Laser Wavelength | 650nm |
| Operating Temperature | -13º~+131º F (-25º~+55º C) |
| Laser Output Power | 5mW |
| Alignment Angle | Horizontal (+/-)90º, Vertical: (+/-)5º |
| Weight | 2.5 lbs. (1.1kg) |
