Description

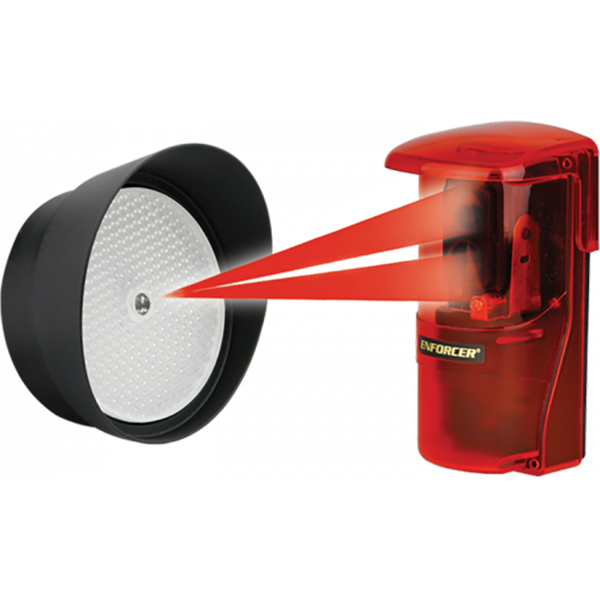

The E-931-S33PRGQ 33ft Polarized Reflective Photoelectric Beam Sensor provides reliable detection of shiny objects that could be missed by a non-polarized sensor.
- Polarized sensor is immune to shiny objects: triggers only when correctly reflected light is detected
- Weatherproof (IP55)
- Anti-condensation housing
- 12-30V DC/AC 60Hz, 100mA
- Up to 33ft (10m) sensing range
- Round reflector, Diameter: 3-1/4″ (82mm)
- Form C relay: 500mA@30VAC/VDC
- Beam status LED
- Compact size: 4-13/16″x2-3/8″x2-7/16″ (122x60x62mm)
- N.C. Tamper switch: 500mA@30VAC/VDC
- Monitored Outputs:
- N.C.
- 10kΩ Resistor
- Hood included for both sensor and reflector
Typical Applications
- Sensor for garage doors, outdoor gates or overhead doors
- Sensor for industrial automation to detect objects on manufacturing line
Specifications
| Type | Polarized reflective photoelectric beam sensor |
| Current Draw | Standby- 55mA@12VDC, Active- 40mA@12VDC |
| Sensing Range | Up to 33′ (10m) |
| Operating Voltage | 12-30V DC/AC 60Hz, 100mA |
| Reaction time | 10ms |
| IP Rating | Weatherproof IP55 |
| Light Source | IR LED/Wavelength 740nm |
| LEDs – Red | Solid, No beam signal, triggered |
| LEDs – Green | Solid, Good beam signal, properly aligned |
| LEDs | Alternating flash- Poor beam signal |
| Alarm Output | SPDT relay output (NO/NC/COM) |
| Switching Capacity | 500mA@30VAC/VDC |
| Tamper Switch | N.C., 500mA@30VAC/VDC |
| Operating Temperature | -4º~131º F (-20º~55º C) |
| Enclosure | IP55 Waterproof |
Troubleshooting
| Sensor does not detect the object | Change the angle of the sensor or readjust the sensitivity setting |
| The beam sensor LED will not turn green | -Clean the sensor and reflector with a damp (not wet) cloth
-Adjust the reflector and/or sensor for proper alignment |
| Beam sensor LED lights when object is detected, but there is no output | Check wiring between the sensor and local alarm device |
