Description
- For internal use only
- Use with Compact system
- Single door access control system
- 4 to 8-digit codes with up to 50 codes
- Optional 20-digit lockout
- 1 to 60-sec door open time

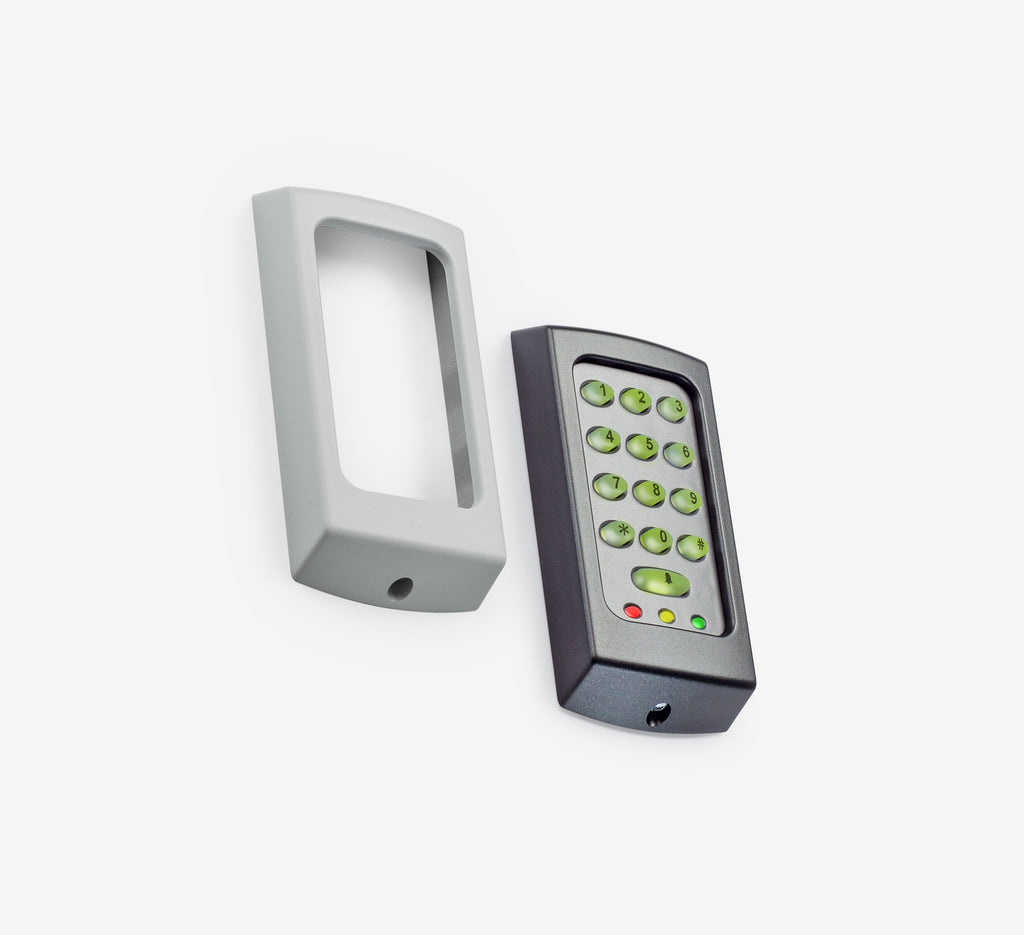

About – TOUCHLOCK compact is a single-door access control system. All of the electronics are within the housing of the keypad. Compact systems can be installed on many doors over a site. The K series keypads are supplied with a choice of black or white bezels that can be fitted in the final stages of installation.
Installation – The compact keypad has two wires which connect to the lock and two wires which connect to the power supply. There are two wires for connection to an exit button if required. The cable exits centrally from the back of the keypad making drilling and mounting very accurate. All settings and codes are programmed via the keypad using the master code.
Operation – If a valid code is entered access is granted. Codes are changed via the keypad using the master code.
