Description

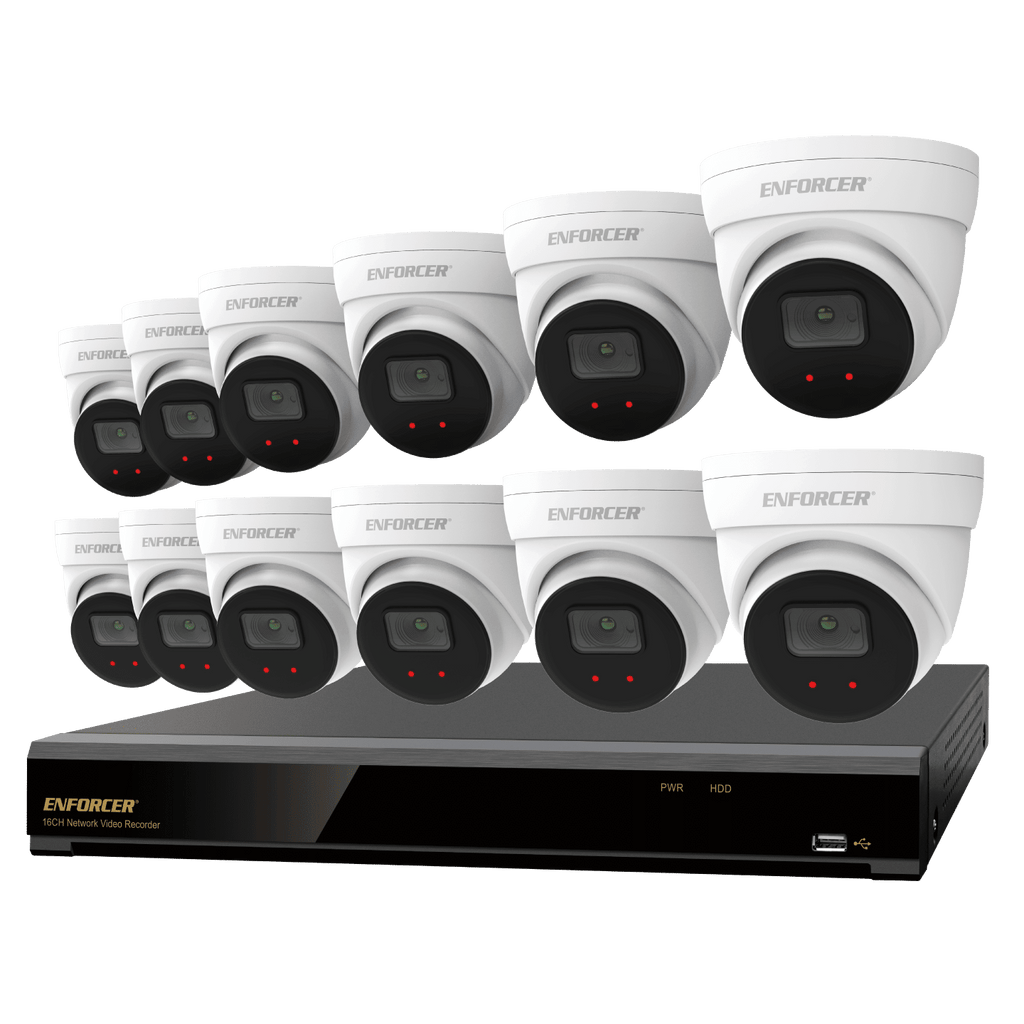

ENFORCER Surveillance Kits offer all the elements of an easy plug-and-play installation. The included IP cameras provide excellent picture quality with True Wide Dynamic Range (WDR) and Digital Noise Reduction (3DNR). The NVR features built-in AI functions for multiple security purposes. The kits are suitable for various applications due to their cost-effectiveness and simple-to-install design.
NVR Features
- EV-N2506-2W4WQ 5MP 2.8mm Turret Cameras included
- Compatible with 8MP (4K) IP Cameras
- Wizard assistance for easy first time setup
- Plug-and-Play
- Built-in PoE ports (IEEE 802.3af/at)
- VGA and HDMI outputs with up to 4K resolution
- Includes one 4TB HDD
- Supports up to 2HDD
- Other HDD sizes available by special order, including 1/2/4/6/8/10 TB
- ONVIF® profile S conformant
- Easy app setup with QR code
- Tri-stream encoding
- Live view recording and playback up to 4K@45FPS
- P2P for simple remote connections using PC or mobile device
- 8 Sensor inputs, 1 alarm relay output
- 9 AI functions including human and vehicle detection (additional functions with EV-N2806-2W4WQ 8MP Turret Camera)

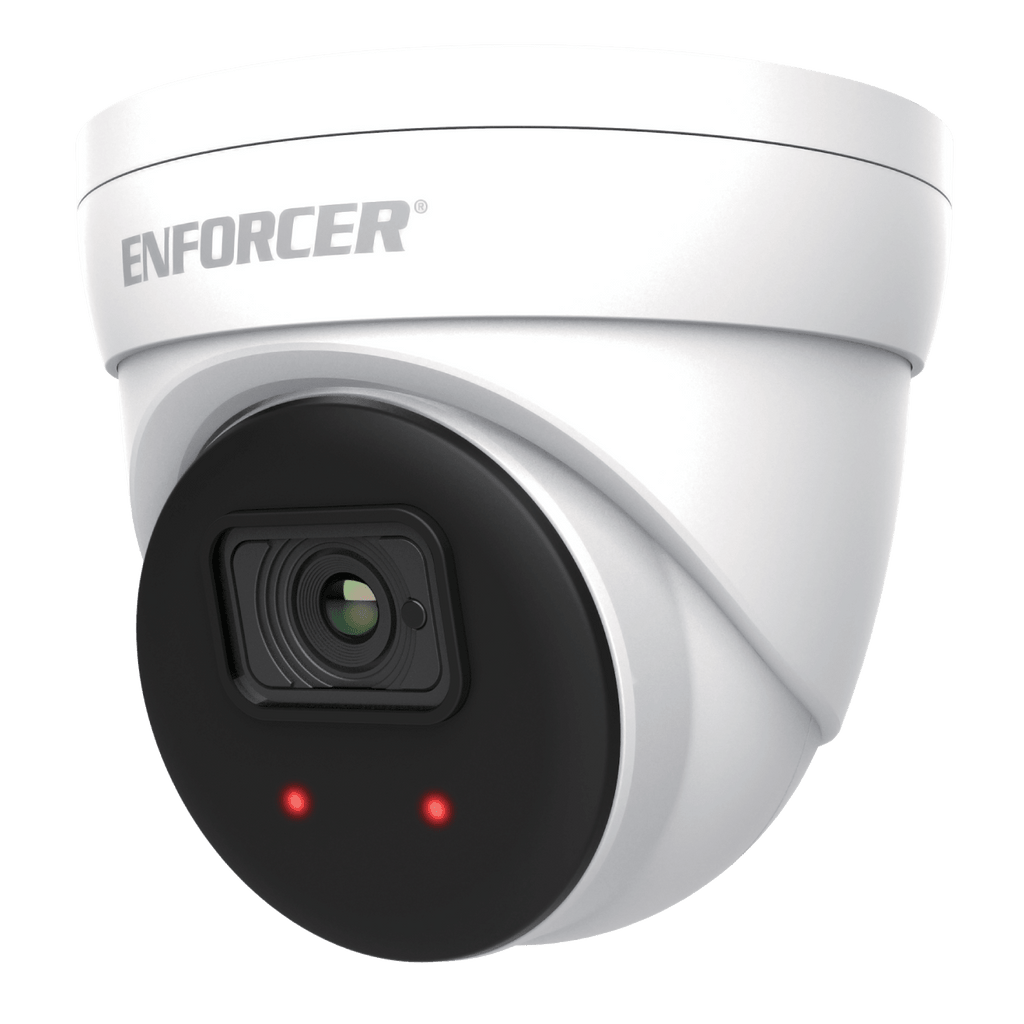

Camera Features
- 1/2.7″ 5MP SmartSens CMOS sensor
- 30FPS@5MP (2880×1620)
- 2.8mm lens
- H.265, H.264, and MJPEG
- True Wide Dynamic Range (WDR)
- Digital Noise Reduction (3DNR)
- True Day & Night function with ICR module
- IP66 Weatherproof
- IR Range 98′ (30mm)
- ONVIF® profile G, S, and T conformant
- Smart IRs adjust IR strength to conditions
AI Functions
- Face detection
- Human & vehicle detection
- Perimeter intrusion detection
- Line crossing detection
- Stationary object detection
- Cross counting
- Heat map
- Crowd density detection
- Queue length detection
With EV-N2806-2W4WQ 8MP Turret Camera (optional)
- Facial recognition
- License plate detection
- License plate recognition
| SL Vision | |
 |
The SL Vision app provides you with a seamless and easy-to-use solution for all your video surveillance needs. With the SL Vision app and your ENFORCER® NVR, you can effortlessly connect to your NVR through the app, view live feeds from your cameras, access recorded footage, and save video clips or snapshots of what you have seen with just a few taps, all at your own convenience.
Experience the convenience and security of managing your NVR from your smartphone or tablet. Available for iOS (11.0 and above) and Android (5.0 and above). |
| SL VMS | |
 |
One portal to monitor and manage your CCTV System. Click here to download SL VMS for Windows |
Camera Specifications
| Image sensor | 1/2.7″ 5MP SmartSens CMOS sensor |
| Effective pixels | 2880(H)x1620(V) |
| Scanning system | Progressive scan |
| Electronic shutter speed | Auto, manual; 1/5 s to 1/20,000 s |
| Minimum illumination | Color: 0.1Lux at F1.2 (AGC on) 0Lux with IR on |
| IR Distance | Distance up to 98′ (30m) |
| IR On/Off control | 2pcs (850nm) LEDs |
| Focal length | 2.8mm |
| Maximum aperture | F1.6 |
| Field of view | Horizontal: 110°, Vertical: 58°, Diagonal:133° |
| Bit rate control | CBR/VBR |
| Bit rate | Main stream: 256 to 8192 Kbps, Sub stream: 128 to 4096 Kbps, Mobile stream: 8 to 1536 Kbps |
| Backlight | Disable (default) BLC, HLC, True WDR |
| White balance | Auto |
| Gain control | Auto |
| Noise reduction | 3DNR |
| Smart IR | Support |
| Image rotation | 0″, 180″ |
| Mirror | Disable, vertical, horizontal, all |
| Privacy masking | Off, on (4 areas, rectangle) |

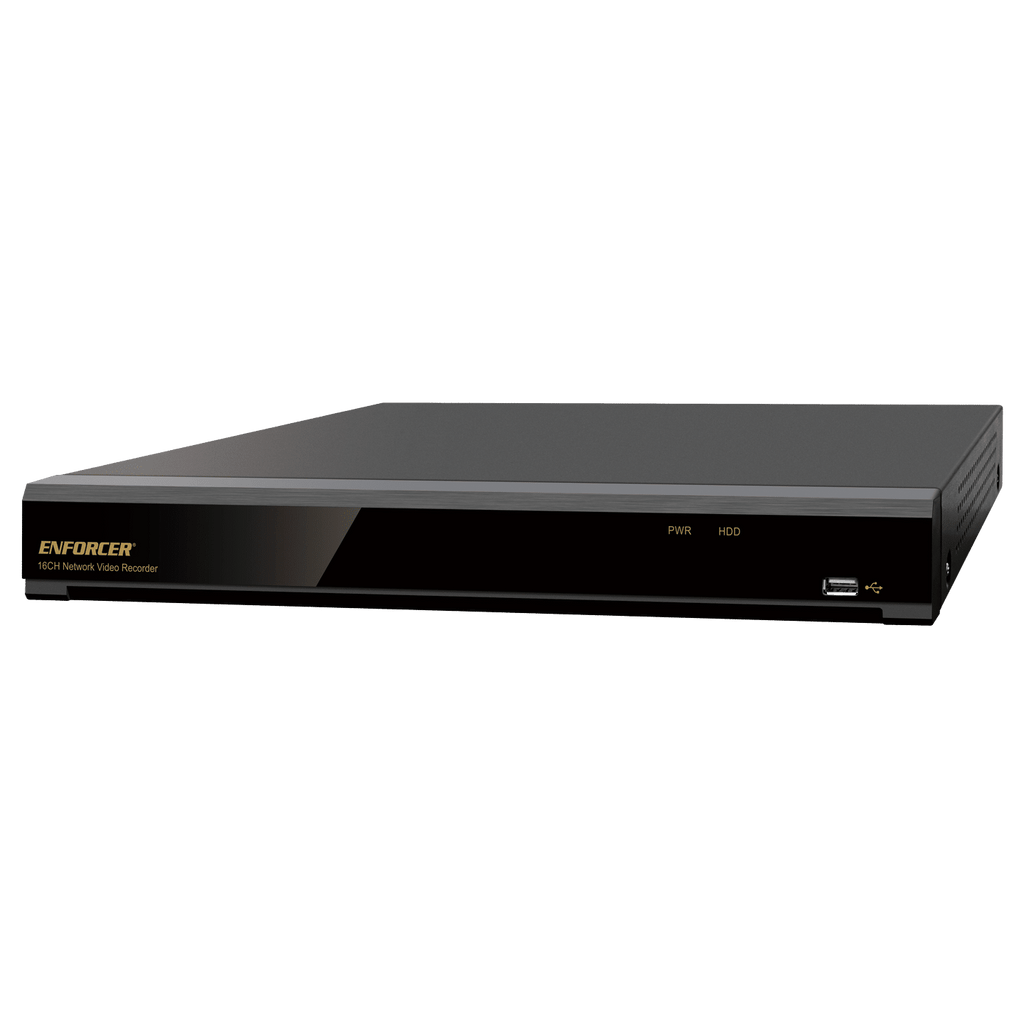

NVR Specifications
| IP Camera included | 12x EV-N2506-2W4WQ |
Video
| Camera support | Up to 8MP (4K) |
| Incoming bandwidth | 112Mbps |
| Outgoing bandwidth | 96Mbps |
| HDMI Output | 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440, 3840×2160 (4K) |
| VGA Output | 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080 |
| Frame rate | 4K: Up to 45FPS, 4MP: Up to 90FPS, 2MP: Up to 180FPS |
| Compression | H.265+, H.265, H.264+, H.264 |
| AI | Support |
| Playback functions | Fast forward / backward (2x, 4x, 8x, 16x), Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
User Interface
| Local | UI5.0 |
| Web | IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above |
Auxiliary Interface
| HDMI Output | 1 Output |
| VGA Output | 1 Output |
| PoE Input | 16x RJ45 |
| USB | USB 2.0 x 1 front & 1 rear |
| Alarm I/O | 8 In / 1 Out |
| Included HDD | 4TB SATA |
| Internal storage capacity | 2 SATA HDD, up to 10TB |
General
| Power supply | 48VDC@3.75A |
| Power consumption | 8W |
| Dimensions (WxDxH) | 14-7/8″ x13-3/8″ x2″ (378x340x50 mm) |
| Operating temperature | 32°~104°F (0°~40°C) |
| Humidity | Less than 90%RH |
