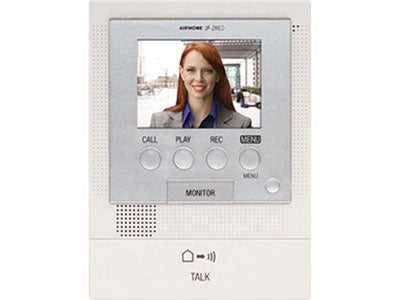

Aiphone JF-2MED Video Master Station with Picture Memory

FEATURES

• Video identification and monitoring with 3-1/2″ screen
• Hands-free communication
• Door release
• All Call between inside stations
• Simple 2-cond. wiring
• Surface mounts to wall on 1-gang box or ring
• Internal Picture Memory
• Internal voice memo and outgoing message can be recorded for playback
• 5 display languages (English, French, German, Spanish, or Dutch)
• External sensor input

SPECS
Communication: Hands-free (VOX) or push-to-talk (simplex)
Video Display: 3-1/2" LCD screen

Picture Memory: Record max. 50 calls (8 images per call) with up to 10 calls protected from overwriting

Door Release: N/O dry contact, 24V AC/DC 500mA (use RY-18L for larger contact rating or RY-3DL for 2 doors)

Mounting: Surface mount directly to wall or desk mount using MCW-S/A

Wire type:
Door station to Master Station: 2-cond., mid cap, solid non-shielded - use Aiphone #871802
Master Station to Sub Master Station: 4-cond., mid cap, solid non shielded - use Aiphone #871804

Wire Distance:
Door Station to Master Station: 165' (22AWG) 330' (18AWG)
Master Station to farthest Sub Master Station: 165' (22AWG) 330' (18AWG)
Power Supply to Master Station: 16' (22AWG) 33' (18AWG)
